Home / DC-DC Module Type / RDDW10

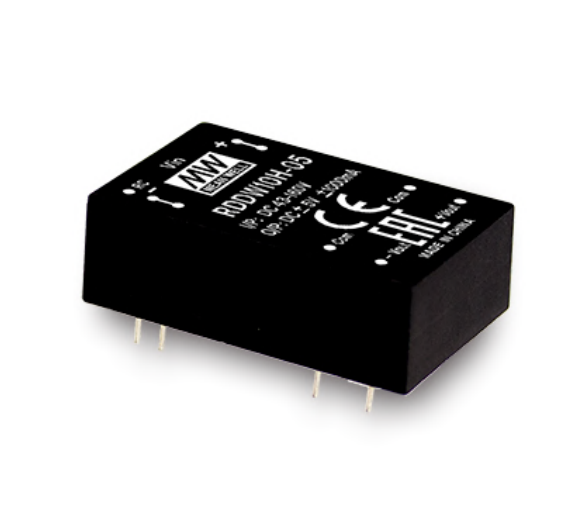

RDDW10 Series
10W DIP Package Reliable Railway DC-DC Converter
RDDW10 Series Main Features:
3KVDC I/O isolation
DIP24 package with standard pinout
4:1 wide input range
Wide operating temperature range -40~85℃
Models:
Manufacturer:
Type:
Other features:
RDDW10H-05 / RDDW10H-12
RDDW10H-15
MEAN WELL
Module
Compliance with EN50155 railway standard
Protections: Short circuit / Overload /
Over voltage / Input under voltage
Full encapsulated
No minimum load required
Remote ON/OFF control
3 years warranty
Quote Request
| RDDW10H-05 | RDDW10H-12 | RDDW10H-15 | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 10 | 10 | 10 | ||||||||||||||
| Input Voltage | 43~160V | 43~160V | 43~160V | ||||||||||||||
| Output Current | ±0~1000mA | ±0~416mA | ±0~333mA | ||||||||||||||
| Output Voltage | ±5V | ±12V | ±15V | ||||||||||||||
| Dimensions | 31.8x20.3x12.7 | 31.8x20.3x12.7 | 31.8x20.3x12.7 | ||||||||||||||
| Working Temperature | -40~+85°C | ||||||||||||||||
| Satety Standards | EAC TP TC 004 approved | ||||||||||||||||
| EMC Standards | BS EN/EN55032(CISPR32), BS EN/EN61000-4-2, BS EN/EN61000-4-3, BS EN/EN61000-4-4 | ||||||||||||||||
