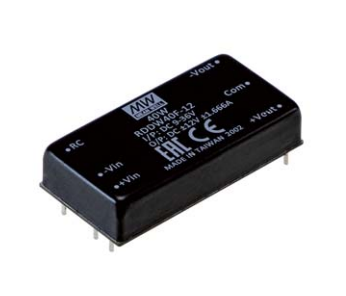

RDDW40 Series
40W 2"x1" Package Reliable Railway DC-DC Converter
RDDW40 Series Main Features:
1.6KVDC, 3KVDC I/O isolation by models
2"x1" compact size with low profile(10.5mm)
4:1 wide input range
Wide operating temperature range -40~90℃
Models:
Manufacturer:
Type:
Other features:
RDDW40F-12 / RDDW40F-15
RDDW40G-12 / RDDW40G-15
MEAN WELL
Module
Compliance with EN50155 railway standard
Protections: Short circuit / Overload /
Over voltage / Input under voltage
Full encapsulated
No minimum load required
Remote ON/OFF control
3 years warranty
Quote Request
| RDDW40F-12 | RDDW40F-15 | RDDW40G-12 | RDDW40G-15 | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 40 | 40 | 40 | 40 | |||||||||||||
| Input Voltage | 9~36V | 9~36V | 18~75V | 18~75V | |||||||||||||
| Output Current | 0~±1.666A | 0~±1.333A | 0~±1.666A | 0~±1.333A | |||||||||||||
| Output Voltage | ±12V | ±15V | ±12V | ±15V | |||||||||||||
| Dimensions | 50.8x25.4x10.5 | 50.8x25.4x10.5 | 50.8x25.4x10.5 | 50.8x25.4x10.5 | |||||||||||||
| Working Temperature | -40~+90°C | ||||||||||||||||
| Satety Standards | EAC TP TC 020/2011(EAC TP TC 004 for 48Vin/110Vin type only) approved | ||||||||||||||||
| EMC Standards | BS EN/EN55032, BS EN/EN61000-4-2, BS EN/EN61000-4-3, BS EN/EN61000-4-4 | ||||||||||||||||
