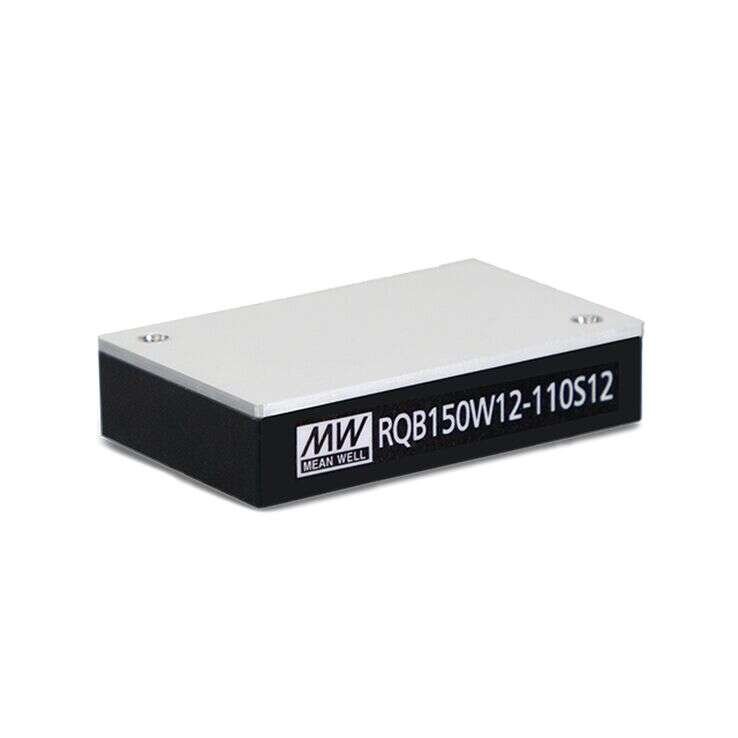

RQB150W12 Series
150W Quarter Brick 14~160Vdc wide Input Railway DC-DC Converte
RQB150W12 Series Main Features:
RQB150W12 series is a 150W module type DC-DC reliable railway with quarter brick package
3KVDC or 2KVAC I/O isolation
Models:
Manufacturer:
Type:
Other features:
RQB150W12-110S12
RQB150W12-110S24
RQB150W12-110S48
RQB150W12-110S54
MEAN WELL
Module
Quarter brick (2.28"x1.45"x0.5")
with industrial standard pin-out
Comply with railway standard
EN50155
12:1(14~160Vdc)ultrawide input range
No minimum load required
Full encapsulated
Protections: Short circuit (continuous)/
Overload/Over temperature/Over vol
-tage/Input under voltage
3 years warranty
Quote Request
| RQB150W12-110S12 | RQB150W12-110S24 | RQB150W12-110S48 | RQB150W12-110S54 | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 150 | 150 | 150 | 150 | |||||||||||||
| Input Voltage | 14~160V | 14~160V | 14~160V | 14~160V | |||||||||||||
| Output Current | 12.5A | 6.25A | 3.125A | 2.778A | |||||||||||||
| Output Voltage | 12V | 24V | 48V | 54V | |||||||||||||
| Dimensions | 57.9x36.8x12.7 | 57.9x36.8x12.7 | 57.9x36.8x12.7 | 57.9x36.8x12.7 | |||||||||||||
| Working Temperature | -40~+90°C | ||||||||||||||||
| Satety Standards | LVD IEC62368-1, EAC TP TC 020/2011 approved | ||||||||||||||||
| EMC Standards | BS EN/EN55032, BS EN/EN55032, BS EN/EN61000-4-2 BS EN/EN61000-4-3 BS EN/EN61000-4-4, BS EN/EN61000-4-5, BS EN/EN61000-4-6 BS EN/EN61000-4-8 | ||||||||||||||||
