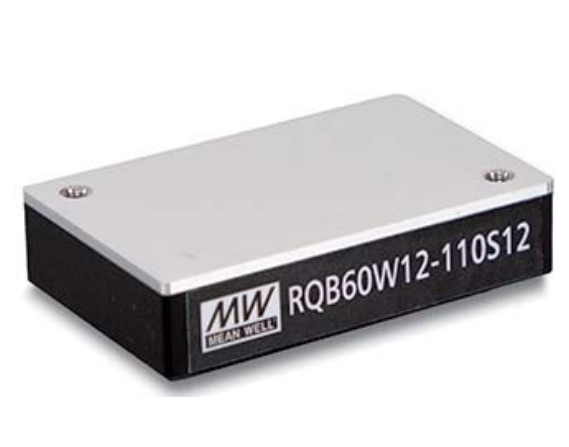

RQB60W12 Series
60W Quarter Brick 14~160Vdc Ultra-wide Input Railway DC-DC Converter
RQB60W12 Series Main Features:
RQB60W12 series is a 60W module type DC-DC reliable railway with quarter brick package
3KVDC or 2KVAC I/O isolation
Models:
Manufacturer:
Type:
Other features:
RQB60W12-110S05
RQB60W12-110512
RQB60W12-110S24
RQB60W12-110S48
RQB60W12-110S54
MEAN WELL
Module
Quarter brick (2.28"x1.45"x0.5")
with industrial standard pin-out
Comply with railway standard
EN50155
12:1(14~160Vdc)ultrawide input range
No minimum load required
Full encapsulated
Protections: Short circuit (continuous)/
Overload/Over temperature/Over vol
-tage/Input under voltage
3 years warranty
Quote Request
| RQB60W12-110S05 | RQB60W12-110512 | RQB60W12-110S24 | RQB60W12-110S48 | RQB60W12-110S54 | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 60 | 60 | 60 | 60 | 60 | ||||||||||||
| Input Voltage | 14~160V | 14~160V | 14~160V | 14~160V | 14~160V | ||||||||||||
| Output Current | 12A | 5A | 2.5A | 1.25A | 1.111A | ||||||||||||
| Output Voltage | 5V | 12V | 24V | 48V | 54V | ||||||||||||
| Dimensions | 57.9x36.8x12.7 | 57.9x36.8x12.7 | 57.9x36.8x12.7 | 57.9x36.8x12.7 | 57.9x36.8x12.7 | ||||||||||||
| Working Temperature | -40~+90°C | ||||||||||||||||
| Satety Standards | CB IEC62368-1, UL62368-1, EAC TP TC 020/2011 approved | ||||||||||||||||
| EMC Standards | BS EN/EN55032 | ||||||||||||||||
