Home / DC-DC Module Type / RSDW08

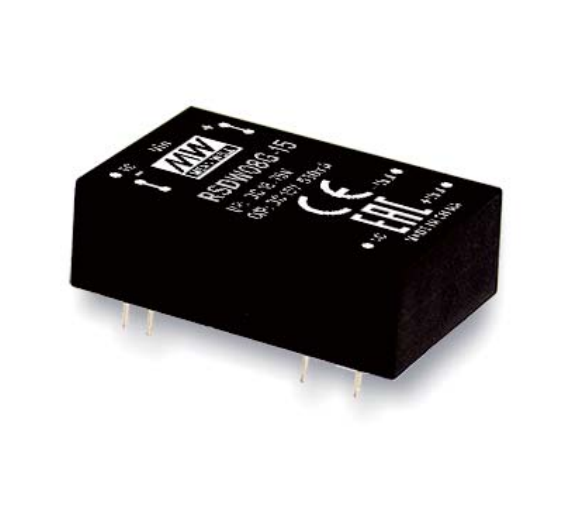

RSDW08 Series
8W DIP Package Reliable Railway DC-DC Converter
RSDW08 Series Main Features:
1.5KVDC I/O isolation
DIP24 package with standard pinout
4:1 wide input range
Wide operating temperature range -40~85℃
Models:
Manufacturer:
Type:
Other features:
RSDW08F-03 / RSDW08F-05
RSDW08F-12 / RSDW08F-15
RSDW08G-03 / RSDW08G-05
RSDW08G-12 / RSDW08G-15
MEAN WELL
Module
Compliance with EN50155 railway standard
Protections: Short circuit / Overload /
Over voltage / Input under voltage
Full encapsulated
No minimum load required
Remote ON/OFF control
3 years warranty
Quote Request
| RSDW08F-03 | RSDW08F-05 | RSDW08F-12 | RSDW08F-15 | RSDW08G-03 | RSDW08G-05 | RSDW08G-12 | RSDW08G-15 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | |||||||||
| Input Voltage | 9~36V | 9~36V | 9~36V | 9~36V | 18~75V | 18~75V | 18~75V | 18~75V | |||||||||
| Output Current | 2000mA | 1600mA | 666mA | 530mA | 2000mA | 1600mA | 666mA | 530mA | |||||||||
| Output Voltage | 3.3V | 5V | 12V | 15V | 3.3V | 5V | 12V | 15V | |||||||||
| Dimensions | 31.8x20.3x12.2 | 31.8x20.3x12.2 | 31.8x20.3x12.2 | 31.8x20.3x12.2 | 31.8x20.3x12.2 | 31.8x20.3x12.2 | 31.8x20.3x12.2 | 31.8x20.3x12.2 | |||||||||
| Working Temperature | -40~+85°C | ||||||||||||||||
| Satety Standards | EAC TP TC 020/2011(EAC TP TC 004 for 48Vin type only) approved | ||||||||||||||||
| EMC Standards | BS EN/EN55032(CISPR32), BS EN/EN61000-4-2, BS EN/EN61000-4-3, BS EN/EN61000-4-4 | ||||||||||||||||
