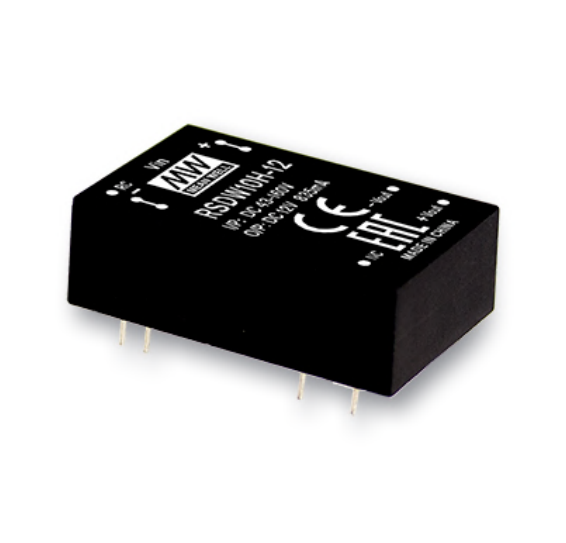

RSDW10 Series
10W DIP Package Reliable Railway DC-DC Converter
RSDW10 Series Main Features:
3KVDC I/O isolation
DIP24 package with standard pinout
4:1 wide input range
Wide operating temperature range -40~85℃
Models:
Manufacturer:
Type:
Other features:
RSDW10H-03 / RSDW10H-05
RSDW10H-12 / RSDW10H-15
MEAN WELL
Module
Compliance with EN50155 railway standard
Protections: Short circuit / Overload /
Over voltage / Input under voltage
Full encapsulated
No minimum load required
Remote ON/OFF control
3 years warranty
Quote Request
| RSDW10H-03 | RSDW10H-05 | RSDW10H-12 | RSDW10H-15 | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 10 | 10 | 10 | 10 | |||||||||||||
| Input Voltage | 43~160V | 43~160V | 43~160V | 43~160V | |||||||||||||
| Output Current | 2500mA | 2000mA | 835mA | 666mA | |||||||||||||
| Output Voltage | 3.3V | 5V | 12V | 15V | |||||||||||||
| Dimensions | 31.8x20.3x12.7 | 31.8x20.3x12.7 | 31.8x20.3x12.7 | 31.8x20.3x12.7 | |||||||||||||
| Working Temperature | -40~+85°C | ||||||||||||||||
| Satety Standards | EAC TP TC 004 approved | ||||||||||||||||
| EMC Standards | BS EN/EN55032(CISPR32), BS EN/EN61000-4-2, BS EN/EN61000-4-3, BS EN/EN61000-4-4 | ||||||||||||||||
