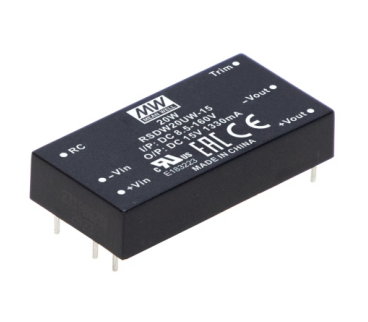

RSDW20UW Series
20W 2"x1" 8.5~160Vdc Ultra-wide Input Railway DC-DC Converter
RSDW20UW Series Main Features:
3KVDC I/O isolation
DIP 2"x1" package with standard pinout
18:1 ultra-wide input range
Wide operating temperature range -40~95℃
Models:
Manufacturer:
Type:
Other features:
RSDW20UW-05 / RSDW20UW-12
RSDW20UW-15
MEAN WELL
Module
Compliance with EN50155 railway standard
Protections: Short circuit / Overload /
Over voltage / Input under voltage
Full encapsulated
No minimum load required
Remote ON/OFF control
Operating altitude up to 5000 meters(Note.5)
3 years warranty
Quote Request
| RSDW20UW-05 | RSDW20UW-12 | RSDW20UW-15 | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 20 | 20 | 20 | ||||||||||||||
| Input Voltage | 8.5~160V | 8.5~160V | 8.5~160V | ||||||||||||||
| Output Current | 4000mA | 1670mA | 1330mA | ||||||||||||||
| Output Voltage | 5V | 12V | 15V | ||||||||||||||
| Dimensions | 50.8x25.4x10.2 | 50.8x25.4x10.2 | 50.8x25.4x10.2 | ||||||||||||||
| Working Temperature | -40~+95°C | ||||||||||||||||
| Satety Standards | UL62368-1, EAC TP TC 004 approved | ||||||||||||||||
| EMC Standards | BS EN/EN50121-3-2, BS EN/EN61000-4-2, BS EN/EN61000-4-3, BS EN/EN61000-4-4 | ||||||||||||||||
