Home / DC-DC Module Type / RSDW40

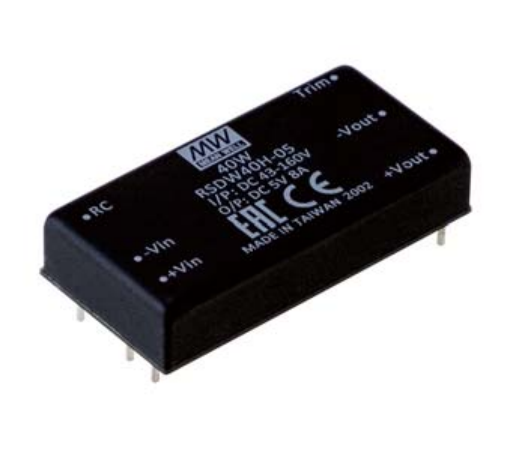

RSDW40 Series
40W 2"x1" Package Reliable Railway DC-DC Converter
RSDW40 Series Main Features:
1.6KVDC, 3KVDC I/O isolation by models
2"x1" compact size with low profile(10.5mm)
4:1 wide input range
Wide operating temperature range -40~90℃
Models:
Manufacturer:
Type:
Other features:
RSDW40F-03 / RSDW40F-05
RSDW40F-12 / RSDW40F-15
RSDW40G-03 / RSDW40G-05
RSDW40G-12 / RSDW40G-15
RSDW40H-05 / RSDW40H-12
RSDW40H-24 / RSDW40H-48
MEAN WELL
Module
Compliance with EN50155 railway standard
Protections: Short circuit / Overload /
Over voltage / Input under voltage
Full encapsulated
No minimum load required
Remote ON/OFF control
3 years warranty
Quote Request
| RSDW40F-03 | RSDW40F-05 | RSDW40F-12 | RSDW40F-15 | RSDW40G-03 | RSDW40G-05 | RSDW40G-12 | RSDW40G-15 | RSDW40H-05 | RSDW40H-12 | RSDW40H-24 | RSDW40H-48 | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | |||||
| Input Voltage | 9~36V | 9~36V | 9~36V | 9~36V | 18~75V | 18~75V | 18~75V | 18~75V | 43~160V | 43~160V | 43~160V | 43~160V | |||||
| Output Current | 10A | 8A | 3.333A | 2.666A | 10A | 8A | 3.333A | 2.666A | 8A | 3.333A | 1.667A | 0.833A | |||||
| Output Voltage | 3.3V | 5V | 12V | 15V | 3.3V | 5V | 12V | 15V | 5V | 12V | 24V | 48V | |||||
| Dimensions | 50.8x25.4x10.5 | 50.8x25.4x10.5 | 50.8x25.4x10.5 | 50.8x25.4x10.5 | 50.8x25.4x10.5 | 50.8x25.4x10.5 | 50.8x25.4x10.5 | 50.8x25.4x10.5 | 50.8x25.4x10.5 | 50.8x25.4x10.5 | 50.8x25.4x10.5 | 50.8x25.4x10.5 | |||||
| Working Temperature | -40~+90°C | ||||||||||||||||
| Satety Standards | EAC TP TC 020/2011(EAC TP TC 004 for 48Vin/110Vin type only) approved | ||||||||||||||||
| EMC Standards | BS EN/EN55032, BS EN/EN61000-4-2, BS EN/EN61000-4-3, BS EN/EN61000-4-4 | ||||||||||||||||
