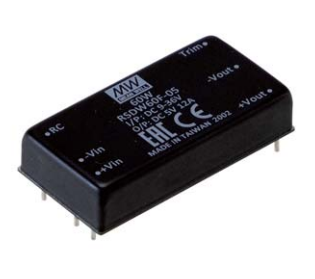

RSDW60 Series

60W 2"x1" Package Reliable Railway DC-DC Converter

RSDW60

RSDW60 Series Main Features:

1.6KVDC, 3KVDC I/O isolation by models

2"x1" compact size with low profile(10.5mm)

4:1 wide input range

Wide operating temperature range -40~85℃

Models:

Manufacturer:

Type:

Other features:

RSDW60F-03 / RSDW60F-05
RSDW60F-12 / RSDW60F-15
RSDW60F-24 / RSDW60G-03
RSDW60G-05 / RSDW60G-12
RSDW60G-15 / RSDW60G-24
RSDW60H-05 / RSDW60H-12
RSDW60H-24 / RSDW60H-48

MEAN WELL

Module

Compliance with EN50155 railway standard

Protections: Short circuit / Overload /
Over voltage / Input under voltage

Full encapsulated

No minimum load required

Remote ON/OFF control

3 years warranty

Quote Request

    RSDW60F-03RSDW60F-05RSDW60F-12RSDW60F-15RSDW60F-24RSDW60G-03RSDW60G-05RSDW60G-12RSDW60G-15RSDW60G-24RSDW60H-05RSDW60H-12RSDW60H-24RSDW60H-48
    Wattage6060606060606060606060606060
    Input Voltage9~36V9~36V9~36V9~36V9~36V18~75V18~75V18~75V18~75V18~75V40~160V40~160V40~160V40~160V
    Output Current12A12A5A4A2.5A12A12A5A4A2.5A12A5A2.5A1.25A
    Output Voltage3.3V5V12V15V24V3.3V5V12V15V24V5V12V24V48V
    Dimensions50.8x25.4x10.550.8x25.4x10.550.8x25.4x10.550.8x25.4x10.550.8x25.4x10.550.8x25.4x10.550.8x25.4x10.550.8x25.4x10.550.8x25.4x10.550.8x25.4x10.550.8x25.4x10.550.8x25.4x10.550.8x25.4x10.550.8x25.4x10.5
    Working Temperature-40~+85°C
    Satety StandardsEAC TP TC 020/2011(EAC TP TC 004 for 48Vin/110Vin type only) approved
    EMC Standards BS EN/EN55032, BS EN/EN61000-4-2, BS EN/EN61000-4-3, BS EN/EN61000-4-4
