Home / DC-DC Module Type / SCW08

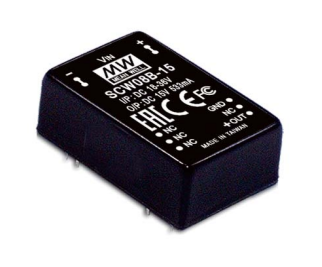

SCW08 Series
8W DC-DC Regulated Single Output Converter
SCW08 Series Main Features:
1500VDC I/O isolation
2:1 wide input range
Built-in EMI filter
Models:
Manufacturer:
Type:
Other features:
SCW08A-05 / SCW08B-05
SCW08C-05 / SCW08A-12
SCW08B-12 / SCW08C-12
SCW08A-15 / SCW08B-15
SCW08C-15
MEAN WELL
Module
Cooling by free air convection
Protections: Short circuit / Overload
Five-sided shield metal case
100% burn-in test
Low cost / High reliability
3 years warranty
Quote Request
| SCW08A-05 | SCW08B-05 | SCW08C-05 | SCW08A-12 | SCW08B-12 | SCW08C-12 | SCW08A-15 | SCW08B-15 | SCW08C-15 | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | ||||||||
| Input Voltage | 9~18VDC | 18~36VDC | 36~72VDC | 9~18VDC | 18~36VDC | 36~72VDC | 9~18VDC | 18~36VDC | 36~72VDC | ||||||||
| Output Current | 320~1600mA | 320~1600mA | 320~1600mA | 134~670mA | 134~670mA | 134~670mA | 106~533mA | 106~533mA | 106~533mA | ||||||||
| Output Voltage | 5V | 5V | 5V | 12V | 12V | 12V | 15V | 15V | 15V | ||||||||
| Dimensions | 31.8x20.3x12.2 | 31.8x20.3x12.2 | 31.8x20.3x12.2 | 31.8x20.3x12.2 | 31.8x20.3x12.2 | 31.8x20.3x12.2 | 31.8x20.3x12.2 | 31.8x20.3x12.2 | 31.8x20.3x12.2 | ||||||||
| Working Temperature | -40~+71°C | ||||||||||||||||
| Satety Standards | EAC TP TC 020/2011 approved | ||||||||||||||||
| EMC Standards | Compliance to BS EN/EN55032 Class B, FCC part 15 Class B, EAC TP TC 020 | ||||||||||||||||
