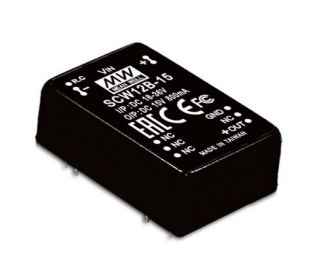

SCW12 Series
12W DC-DC Regulated Single Output Converter
SCW12 Series Main Features:
1500VDC I/O isolation
2:1 wide input range
Built-in EMI filter
Built-in remote ON/OFF control
Models:
Manufacturer:
Type:
Other features:
SCW12A-05 / SCW12B-05
SCW12C-05 / SCW12A-12
SCW12B-12 / SCW12C-12
SCW12A-15 / SCW12B-15
SCW12C-15
MEAN WELL
Module
Cooling by free air convection
Protections: Short circuit / Overload
Five-sided shield metal case
100% full load burn-in test
Low cost / High reliability
Modified models available: output 2.5V/3.3V
3 years warranty
Quote Request
| SCW12A-05 | SCW12B-05 | SCW12C-05 | SCW12A-12 | SCW12B-12 | SCW12C-12 | SCW12A-15 | SCW12B-15 | SCW12C-15 | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | ||||||||
| Input Voltage | 9~18VDC | 18~36VDC | 36~72VDC | 9~18VDC | 18~36VDC | 36~72VDC | 9~18VDC | 18~36VDC | 36~72VDC | ||||||||
| Output Current | 480~2400mA | 480~2400mA | 480~2400mA | 200~1000mA | 200~1000mA | 200~1000mA | 160~800mA | 160~800mA | 160~800mA | ||||||||
| Output Voltage | 5V | 5V | 5V | 12V | 12V | 12V | 15V | 15V | 15V | ||||||||
| Dimensions | 31.8x20.3x12.2 | 31.8x20.3x12.2 | 31.8x20.3x12.2 | 31.8x20.3x12.2 | 31.8x20.3x12.2 | 31.8x20.3x12.2 | 31.8x20.3x12.2 | 31.8x20.3x12.2 | 31.8x20.3x12.2 | ||||||||
| Working Temperature | -40~+71°C | ||||||||||||||||
| Satety Standards | EAC TP TC 020/2011 approved | ||||||||||||||||
| EMC Standards | Compliance to BS EN/EN55032 Class A, FCC part 15 Class A, EAC TP TC 020 | ||||||||||||||||
