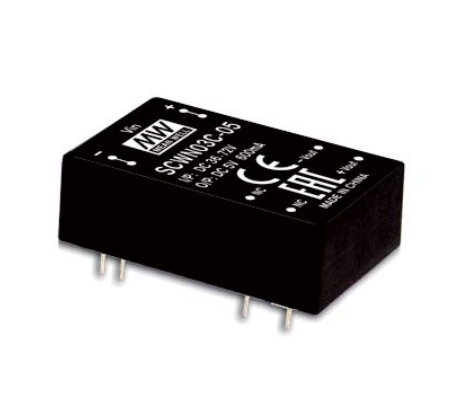

SCWN03 Series

3W DIP Package DC-DC Regulated Converter

SCWN03

SCWN03 Series Main Features:

3KVDC I/O isolation

DIP24 package with industry standard pinout

2:1 wide input range

Operating temperature range -40~90℃

Models:

Manufacturer:

Type:

Other features:

SCWN03E-03 / SCWN03E-05
SCWN03E-12 / SCWN03E-15
SCWN03A-03 / SCWN03A-05
SCWN03A-12 / SCWN03A-15
SCWN03B-03 / SCWN03B-05
SCWN03B-12 / SCWN03B-15
SCWN03C-03 / SCWN03C-05
SCWN03C-12 / SCWN03C-15

MEAN WELL

Module

Comply to BS EN/EN55032 radiated Class
A without additional components

Protections: Short circuit / Overload / Input under voltage

High efficiency up to 87%

No minimum load required

3 years warranty

Quote Request

    SCWN03E-03SCWN03E-05SCWN03E-12SCWN03E-15SCWN03A-03SCWN03A-05SCWN03A-12SCWN03A-15SCWN03B-03SCWN03B-05SCWN03B-12SCWN03B-15SCWN03C-03SCWN03C-05SCWN03C-12SCWN03C-15
    Wattage3333333333333333
    Input Voltage4.5~9V4.5~9V4.5~9V4.5~9V9~18V9~18V9~18V9~18V18~36V18~36V18~36V18~36V36~72V36~72V36~72V36~72V
    Output Current600mA600mA250mA200mA600mA600mA250mA200mA600mA600mA250mA200mA600mA600mA250mA200mA
    Output Voltage3.3V5V12V15V3.3V5V12V15V3.3V5V12V15V3.3V5V12V15V
    Dimensions31.8x20.3x12.231.8x20.3x12.231.8x20.3x12.231.8x20.3x12.231.8x20.3x12.231.8x20.3x12.231.8x20.3x12.231.8x20.3x12.231.8x20.3x12.231.8x20.3x12.231.8x20.3x12.231.8x20.3x12.231.8x20.3x12.231.8x20.3x12.231.8x20.3x12.231.8x20.3x12.2
    Working Temperature-40~+90°C
    Satety StandardsEAC TP TC 020/2011 approved
    EMC Standards BS EN/EN55032(CISPR32), BS EN/EN61000-4-2, BS EN/EN61000-4-3, BS EN/EN61000-4-4
