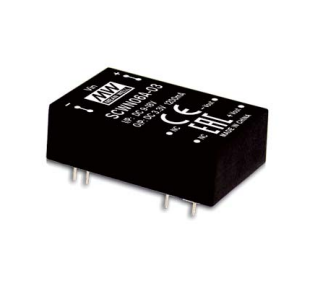

SCWN06 Series

6W DIP Package DC-DC Regulated Converter

SCWN06

SCWN06 Series Main Features:

3KVDC I/O isolation

DIP24 package with industry standard pinout

2:1 wide input range

Operating temperature range -40~90℃

Models:

Manufacturer:

Type:

Other features:

SCWN06A-03 / SCWN06A-05
SCWN06A-12 / SCWN06A-15
SCWN06B-03 / SCWN06B-05
SCWN06B-12 / SCWN06B-15
SCWN06C-03 / SCWN06C-05
SCWN06C-12 / SCWN06C-15

MEAN WELL

Module

Comply to BS EN/EN55032 radiated Class
A without additional components

Protections: Short circuit / Overload / Input under voltage

High efficiency up to 87%

No minimum load required

3 years warranty

Quote Request

    SCWN06A-03SCWN06A-05SCWN06A-12SCWN06A-15SCWN06B-03SCWN06B-05SCWN06B-12SCWN06B-15SCWN06C-03SCWN06C-05SCWN06C-12SCWN06C-15
    Wattage666666666666
    Input Voltage9~18V9~18V9~18V9~18V18~36V18~36V18~36V18~36V36~72V36~72V36~72V36~72V
    Output Current1200mA1000mA500mA400mA1200mA1000mA500mA400mA1200mA1000mA500mA400mA
    Output Voltage3.3V5V12V15V3.3V5V12V15V3.3V5V12V15V
    Dimensions31.8x20.3x10.231.8x20.3x10.231.8x20.3x10.231.8x20.3x10.231.8x20.3x10.231.8x20.3x10.231.8x20.3x10.231.8x20.3x10.231.8x20.3x10.231.8x20.3x10.231.8x20.3x10.231.8x20.3x10.2
    Working Temperature-40~+90°C
    Satety StandardsEAC TP TC 020/2011 approved
    EMC StandardsBS EN/EN55032(CISPR32), BS EN/EN61000-4-2, BS EN/EN61000-4-3, BS EN/EN61000-4-4
