Home / DC-DC Module Type / SDM30

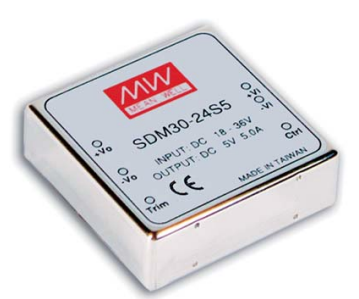

SDM30 Series
30W DC-DC Single Output
SDM30 Series Main Features:
Wide 2:1 DC input range
In/out capacitance 1000pF
1000VDC I/O isolation for D/D
Fixed switching frequency at 225KHz
Models:
Manufacturer:
Type:
Other features:
SDM30-12S3 / SDM30-24S3
SDM30-48S3 / SDM30-12S5
SDM30-24S5 / SDM30-48S5
MEAN WELL
Module
Cooling by free air convection
Protections: Short circuit / Overload / Over voltage
100% full load burn-in test
Low cost / High reliability
Built-in remote On-OFF control
2 years warranty
Quote Request
| SDM30-12S3 | SDM30-24S3 | SDM30-48S3 | SDM30-12S5 | SDM30-24S5 | SDM30-48S5 | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 30 | 30 | 30 | 30 | 30 | 30 | |||||||||||
| Input Voltage | 12VDC | 24VDC | 48VDC | 12VDC | 24VDC | 48VDC | |||||||||||
| Output Current | 5A | 5A | 5A | 5A | 5A | 5A | |||||||||||
| Output Voltage | 3.3V | 3.3V | 3.3V | 5V | 5V | 5V | |||||||||||
| Dimensions | 50.8x50.8x16 | 50.8x50.8x16 | 50.8x50.8x16 | 50.8x50.8x16 | 50.8x50.8x16 | 50.8x50.8x16 | |||||||||||
| Working Temperature | -25~+85°C | ||||||||||||||||
| Satety Standards | Design refer to LVD, EAC TP TC 004 approved | ||||||||||||||||
| EMC Standards | Compliance to BS EN/EN55032 (CISPR32) Class B, EAC TP TC 020 | ||||||||||||||||
