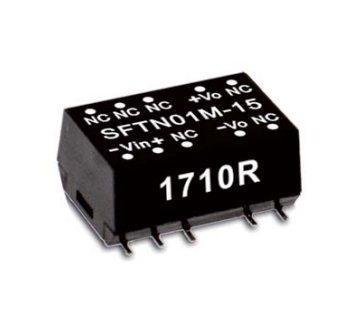

SFTN01 Series
1W SMD Package DC-DC Unregulated Converter
SFTN01 Series Main Features:
SMD package with industry standard pinout
Operating temperature range -40~+90℃
Comply to BS EN/EN55032 radiated Class B without additional components
Models:
Manufacturer:
Type:
Other features:
SFTN01L-05 / SFTN01L-09
SFTN01L-12 / SFTN01L-15
SFTN01M-05 / SFTN01M-09
SFTN01M-12 / SFTN01M-15
SFTN01N-05 / SFTN01N-09
SFTN01N-12 / SFTN01N-15
MEAN WELL
Module
High efficiency up to 82%
Protections: Short circuit
Optional reel packing
3KVDC I/O isolation
Optional reel packing
Low cost
3 years warranty
Quote Request
| SFTN01L-05 | SFTN01L-09 | SFTN01L-12 | SFTN01L-15 | SFTN01M-05 | SFTN01M-09 | SFTN01M-12 | SFTN01M-15 | SFTN01N-05 | SFTN01N-09 | SFTN01N-12 | SFTN01N-15 | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||||
| Input Voltage | 4.5~5.5V | 4.5~5.5V | 4.5~5.5V | 4.5~5.5V | 10.8~13.2V | 10.8~13.2V | 10.8~13.2V | 10.8~13.2V | 21.6~26.4V | 21.6~26.4V | 21.6~26.4V | 21.6~26.4V | |||||
| Output Current | 20~200mA | 11.1~111mA | 8.4~84mA | 6.7~67mA | 20~200mA | 11.1~111mA | 8.4~84mA | 6.7~67mA | 20~200mA | 11.1~111mA | 8.4~84mA | 6.7~67mA | |||||
| Output Voltage | 5V | 9V | 12V | 15V | 5V | 9V | 12V | 15V | 5V | 9V | 12V | 15V | |||||
| Dimensions | 15.24x10.9x7.1 | 15.24x10.9x7.1 | 15.24x10.9x7.1 | 15.24x10.9x7.1 | 15.24x10.9x7.1 | 15.24x10.9x7.1 | 15.24x10.9x7.1 | 15.24x10.9x7.1 | 15.24x10.9x7.1 | 15.24x10.9x7.1 | 15.24x10.9x7.1 | 15.24x10.9x7.1 | |||||
| Working Temperature | -40~+90°C | ||||||||||||||||
| Satety Standards | UL62368-1(Except for 9V output models), EAC TP TC 020/2011 approved | ||||||||||||||||
| EMC Standards | BS EN/EN55032(CISPR32), BS EN/EN61000-4-2, BS EN/EN61000-4-3, BS EN/EN61000-4-4 | ||||||||||||||||
