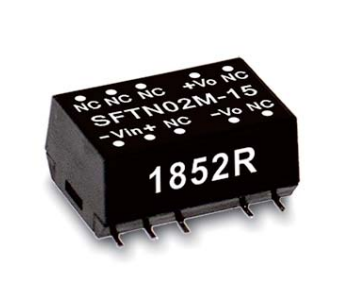

SFTN02 Series
2W SMD Package DC-DC Unregulated Converter
SFTN02 Series Main Features:
SMD package with industry standard pinout
Operating temperature range -40~+100℃
Comply to BS EN/EN55032 radiated Class A without additional components
Models:
Manufacturer:
Type:
Other features:
SFTN02L-05 / SFTN02L-12
SFTN02L-15 / SFTN02M-05
SFTN02M-12 / SFTN02M-15
SFTN02N-05 / SFTN02N-12
SFTN02N-15
MEAN WELL
Module
High efficiency up to 82%
Protections: Short circuit
Optional reel packing
3KVDC I/O isolation
Optional reel packing
Low cost
3 years warranty
Quote Request
| SFTN02L-05 | SFTN02L-12 | SFTN02L-15 | SFTN02M-05 | SFTN02M-12 | SFTN02M-15 | SFTN02N-05 | SFTN02N-12 | SFTN02N-15 | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | ||||||||
| Input Voltage | 4.5~5.5V | 4.5~5.5V | 4.5~5.5V | 10.8~13.2V | 10.8~13.2V | 10.8~13.2V | 21.6~26.4V | 21.6~26.4V | 21.6~26.4V | ||||||||
| Output Current | 40~400mA | 33~167mA | 27~133mA | 40~400mA | 33~167mA | 27~133mA | 40~400mA | 33~167mA | 27~133mA | ||||||||
| Output Voltage | 5V | 12V | 15V | 5V | 12V | 15V | 5V | 12V | 15V | ||||||||
| Dimensions | 15.24x10.9x7.1 | 15.24x10.9x7.1 | 15.24x10.9x7.1 | 15.24x10.9x7.1 | 15.24x10.9x7.1 | 15.24x10.9x7.1 | 15.24x10.9x7.1 | 15.24x10.9x7.1 | 15.24x10.9x7.1 | ||||||||
| Working Temperature | -40~+100°C | ||||||||||||||||
| Satety Standards | EAC TP TC 020/2011 approved | ||||||||||||||||
| EMC Standards | BS EN/EN55032(CISPR32) | ||||||||||||||||
