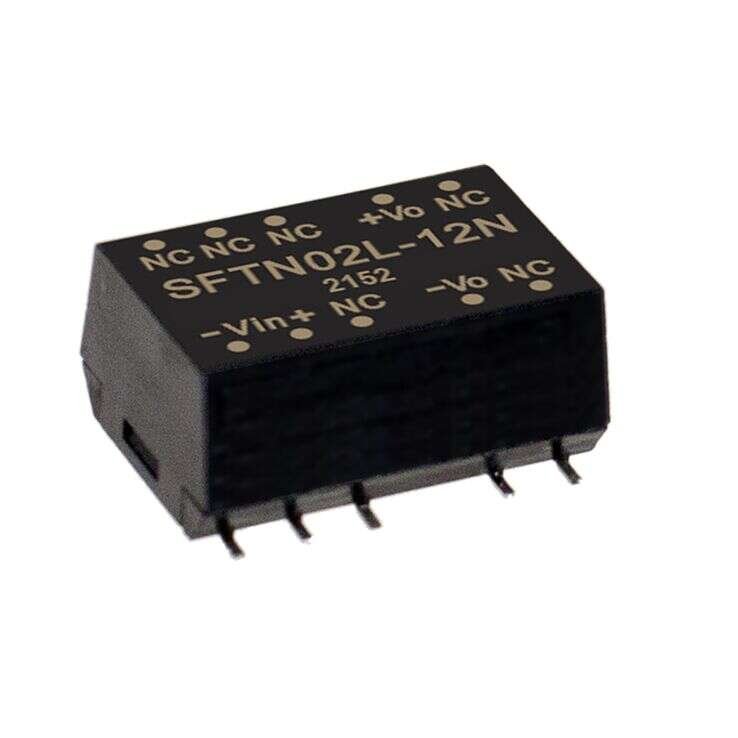

SFTN02-N Series
2W SMD Package DC-DC Unregulated Converter
SFTN02-N Series Main Features:
SFTN02-N series is 2W isolated and unregulated module type DC-DC converter with SMD package
Models:
Manufacturer:
Type:
Other features:
SFTN02L-05N / SFTN02L-12N
SFTN02L-15N / SFTN02M-05N
SFTN02M-12N / SFTN02M-15N
SFTN02N-05N / SFTN02N-12N
SFTN02N-15N
MEAN WELL
Module
SMD package with industry standard pinout
Operating temperature range -40~85°C
High efficiency up to 86%
3KVDC I/O isolation
Low cost
3 years warranty
Quote Request
| SFTN02L-05N | SFTN02L-12N | SFTN02L-15N | SFTN02M-05N | SFTN02M-12N | SFTN02M-15N | SFTN02N-05N | SFTN02N-12N | SFTN02N-15N | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | ||||||||
| Input Voltage | 4.5~5.5V | 4.5~5.5V | 4.5~5.5V | 10.8~13.2V | 10.8~13.2V | 10.8~13.2V | 21.6~26.4V | 21.6~26.4V | 21.6~26.4V | ||||||||
| Output Current | 40~400mA | 33~167mA | 27~133mA | 40~400mA | 33~167mA | 27~133mA | 40~400mA | 33~167mA | 27~133mA | ||||||||
| Output Voltage | 5V | 12V | 15V | 5V | 12V | 15V | 5V | 12V | 15V | ||||||||
| Dimensions | 15.24x10.9x7.1 | 15.24x10.9x7.1 | 15.24x10.9x7.1 | 15.24x10.9x7.1 | 15.24x10.9x7.1 | 15.24x10.9x7.1 | 15.24x10.9x7.1 | 15.24x10.9x7.1 | 15.24x10.9x7.1 | ||||||||
| Working Temperature | -40~+85°C | ||||||||||||||||
| Satety Standards | EAC TP TC 004 approved | ||||||||||||||||
| EMC Standards | BS EN/EN55032(CISPR32) | ||||||||||||||||
