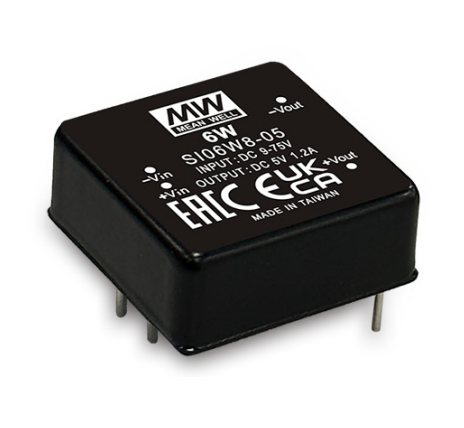

SI06W8 Series
6W 1"x1" Package 8:1 Ultra-Wide Input DC-DC Regulated Converter
SI06W8 Series Main Features:
3KVDC I/O isolation
DIP 1"x1" package with industry standard pinout
8:1 ultrawide input range
Operating temperature range -40~90℃
Models:
Manufacturer:
Type:
Other features:
SI06W8-03 / SI06W8-05
SI06W8-09 / SI06W8-12
SI06W8-15 / SI06W8-24
MEAN WELL
Module
Comply to BS EN/EN55032 radiated Class
A without additional components
Protections: Short circuit / Overload / Input under voltage / Over voltage
High efficiency up to 86%
No minimum load required
Remote ON/OFF control(optional)
3 years warranty
Quote Request
| SI06W8-03 | SI06W8-05 | SI06W8-09 | SI06W8-12 | SI06W8-15 | SI06W8-24 | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 6 | 6 | 6 | 6 | 6 | 6 | |||||||||||
| Input Voltage | 9~75V | 9~75V | 9~75V | 9~75V | 9~75V | 9~75V | |||||||||||
| Output Current | 0~1500mA | 0~1200mA | 0~667mA | 0~500mA | 0~400mA | 0~250mA | |||||||||||
| Output Voltage | 3.3V | 5V | 9V | 12V | 15V | 24V | |||||||||||
| Dimensions | 25.4x25.4x10.2 | 25.4x25.4x10.2 | 25.4x25.4x10.2 | 25.4x25.4x10.2 | 25.4x25.4x10.2 | 25.4x25.4x10.2 | |||||||||||
| Working Temperature | -40~+90°C | ||||||||||||||||
| Satety Standards | EAC TP TC 020/2011 approved | ||||||||||||||||
| EMC Standards | BS EN/EN55032(CISPR32), BS EN/EN61000-4-2, BS EN/EN61000-4-3, BS EN/EN61000-4-4 | ||||||||||||||||
