Home / DC-DC Module Type / SKA40

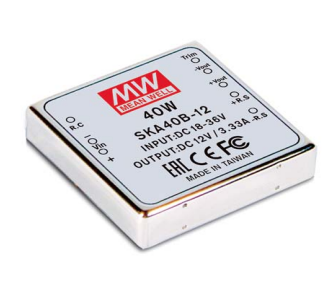

SKA40 Series
40W DC-DC Regulated Single Output Converter
SKA40 Series Main Features:
2:1 wide input range
Built-in remote ON/OFF control
1.5KVDC I/O isolation
High efficiency up to 92%
Built-in remote sense
Models:
Manufacturer:
Type:
Other features:
SKA40A-05 / SKA40B-05
SKA40C-05 / SKA40A-12
SKA40B-12 / SKA40C-12
SKA40A-15 / SKA40B-15
SKA40C-15
MEAN WELL
Module
Built-in EMI filter
Cooling by free air convection
Protections: Short circuit / Overload / Over voltage
Six-sided shield metal case
100% burn-in test
Low cost / High reliability
Approvals: FCC / EAC / CE / UKCA
Output 3.3V/9V available
2 years warranty
Quote Request
| SKA40A-05 | SKA40B-05 | SKA40C-05 | SKA40A-12 | SKA40B-12 | SKA40C-12 | SKA40A-15 | SKA40B-15 | SKA40C-15 | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | ||||||||
| Input Voltage | 9~18V | 18~36V | 36~72V | 9~18V | 18~36V | 36~72V | 9~18V | 18~36V | 36~72V | ||||||||
| Output Current | 0.7~7A | 0.7~7A | 0.7~7A | 0.3~3.33A | 0.3~3.33A | 0.3~3.33A | 0.26~2.67A | 0.26~2.67A | 0.26~2.67A | ||||||||
| Output Voltage | 5V | 5V | 5V | 12V | 12V | 12V | 15V | 15V | 15V | ||||||||
| Dimensions | 50.8x50.8x11.0 | 50.8x50.8x11.0 | 50.8x50.8x11.0 | 50.8x50.8x11.0 | 50.8x50.8x11.0 | 50.8x50.8x11.0 | 50.8x50.8x11.0 | 50.8x50.8x11.0 | 50.8x50.8x11.0 | ||||||||
| Working Temperature | -40~+80°C | ||||||||||||||||
| Satety Standards | EAC TP TC 020/2011 (EAC TP TC 004 for 48Vin type only) approved | ||||||||||||||||
| EMC Standards | Compliance to BS EN/EN55032 Class A, FCC part 15 Class A, EAC TP TC 020 | ||||||||||||||||
