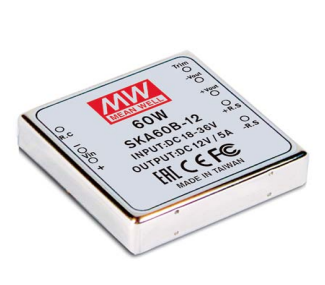

SKA60 Series
60W DC-DC Regulated Single Output Converter
SKA60 Series Main Features:
2:1 wide input range
2"x2" compact size
High efficiency up to 93%
1.5KVDC I/O isolation
Models:
Manufacturer:
Type:
Other features:
SKA60A-05 / SKA60B-05
SKA60C-05 / SKA60A-12
SKA60B-12 / SKA60C-12
SKA60A-15 / SKA60B-15
SKA60C-15
MEAN WELL
Module
Built-in remote sense
Cooling by free air convection
Protections: Short circuit / Overload /
Input and output voltage
Six-sided shield metal case
100% burn-in test
Low cost / High reliability
Output 3.3V available
2 years warranty
Quote Request
| SKA60A-05 | SKA60B-05 | SKA60C-05 | SKA60A-12 | SKA60B-12 | SKA60C-12 | SKA60A-15 | SKA60B-15 | SKA60C-15 | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | ||||||||
| Input Voltage | 9~18V | 18~36V | 36~72V | 9~18V | 18~36V | 36~72V | 9~18V | 18~36V | 36~72V | ||||||||
| Output Current | 1.2~12A | 1.2~12A | 1.2~12A | 0.5~5A | 0.5~5A | 0.5~5A | 0.4~4A | 0.4~4A | 0.4~4A | ||||||||
| Output Voltage | 5V | 5V | 5V | 12V | 12V | 12V | 15V | 15V | 15V | ||||||||
| Dimensions | 50.8x50.8x11.0 | 50.8x50.8x11.0 | 50.8x50.8x11.0 | 50.8x50.8x11.0 | 50.8x50.8x11.0 | 50.8x50.8x11.0 | 50.8x50.8x11.0 | 50.8x50.8x11.0 | 50.8x50.8x11.0 | ||||||||
| Working Temperature | -40~+71°C | ||||||||||||||||
| Satety Standards | EAC TP TC 020/2011 (EAC TP TC 004 for 48Vin type only) approved | ||||||||||||||||
| EMC Standards | Compliance to BS EN/EN55032 Class A, FCC part 15 Class A without external components, EAC TP TC 020 | ||||||||||||||||
