Home / DC-DC Module Type / SKE10

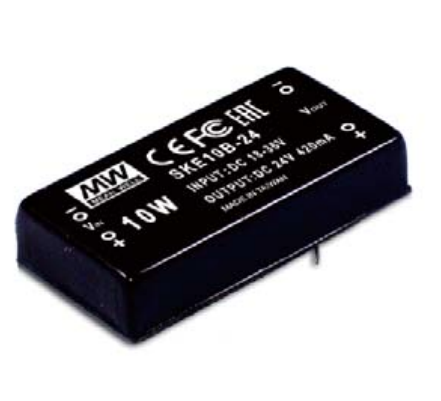

SKE10 Series
10W DC-DC Regulated Single Output Converter
SKE10 Series Main Features:
2:1 wide input range
4:1 wide input range (option)
3KVDC I/O isolation(option)
1.5KVDC I/O isolation
Models:
Manufacturer:
Type:
Other features:
SKE10A-05 / SKE10B-05
SKE10C-05 / SKE10A-09
SKE10B-09 / SKE10C-09
SKE10A-12 / SKE10B-12
SKE10C-12 / SKE10A-15
SKE10B-15 / SKE10C-15
MEAN WELL
Module
Built-in EMI filter
Cooling by free air convection
Protections: Short circuit / Overload
Six-sided shield metal case
100% burn-in test
Low cost / High reliability
Approvals: FCC / EAC / CE / UKCA
2 years warranty
Quote Request
| SKE10A-05 | SKE10B-05 | SKE10C-05 | SKE10A-09 | SKE10B-09 | SKE10C-09 | SKE10A-12 | SKE10B-12 | SKE10C-12 | SKE10A-15 | SKE10B-15 | SKE10C-15 | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | |||||
| Input Voltage | 9~18V | 18~36V | 36~72V | 9~18V | 18~36V | 36~72V | 9~18V | 18~36V | 36~72V | 9~18V | 18~36V | 36~72V | |||||
| Output Current | 200~2000mA | 200~2000mA | 200~2000mA | 84~840mA | 84~840mA | 84~840mA | 66.6~666mA | 66.6~666mA | 66.6~666mA | 42~420mA | 42~420mA | 42~420mA | |||||
| Output Voltage | 5V | 5V | 5V | 12V | 12V | 12V | 15V | 15V | 15V | 24V | 24V | 24V | |||||
| Dimensions | 50.8x25.4x11.27 | 50.8x25.4x11.27 | 50.8x25.4x11.27 | 50.8x25.4x11.27 | 50.8x25.4x11.27 | 50.8x25.4x11.27 | 50.8x25.4x11.27 | 50.8x25.4x11.27 | 50.8x25.4x11.27 | 50.8x25.4x11.27 | 50.8x25.4x11.27 | 50.8x25.4x11.27 | |||||
| Working Temperature | -25~+71°C | ||||||||||||||||
| Satety Standards | EAC TP TC 020/2011 approved | ||||||||||||||||
| EMC Standards | Compliance to BS EN/EN55032 Class A, FCC part 15 Class A, EAC TP TC 020 | ||||||||||||||||
