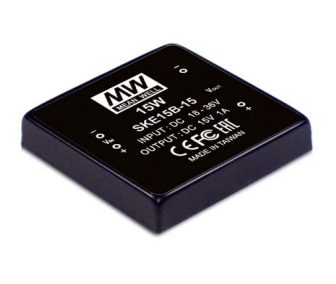

SKE15 Series
15W DC-DC Regulated Single Output Converter
SKE15 Series Main Features:
2:1 wide input range
4:1 wide input range (option)
3KVDC I/O isolation(option)
1.5KVDC I/O isolation
Models:
Manufacturer:
Type:
Other features:
SKE15A-05 / SKE15B-05
SKE15C-05 / SKE15A-12
SKE15B-12 / SKE15C-12
SKE15A-15 / SKE15B-15
SKE15C-15 / SKE15A-24
SKE15B-24 / SKE15C-24
MEAN WELL
Module
Built-in EMI filter
Cooling by free air convection
Protections: Short circuit / Overload
Six-sided shield metal case
100% burn-in test
Low cost / High reliability
Approvals: FCC / EAC / CE / UKCA
2 years warranty
Quote Request
| SKE15A-05 | SKE15B-05 | SKE15C-05 | SKE15A-12 | SKE15B-12 | SKE15C-12 | SKE15A-15 | SKE15B-15 | SKE15C-15 | SKE15A-24 | SKE15B-24 | SKE15C-24 | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | |||||
| Input Voltage | 9~18V | 18~36V | 36~72V | 9~18V | 18~36V | 36~72V | 9~18V | 18~36V | 36~72V | 9~18V | 18~36V | 36~72V | |||||
| Output Current | 300~3000mA | 300~3000mA | 300~3000mA | 125~1250mA | 125~1250mA | 125~1250mA | 100~1000mA | 100~1000mA | 100~1000mA | 62.5~625mA | 62.5~625mA | 62.5~625mA | |||||
| Output Voltage | 5V | 5V | 5V | 12V | 12V | 12V | 15V | 15V | 15V | 24V | 24V | 24V | |||||
| Dimensions | 50.8x50.8x11.0 | 50.8x50.8x11.0 | 50.8x50.8x11.0 | 50.8x50.8x11.0 | 50.8x50.8x11.0 | 50.8x50.8x11.0 | 50.8x50.8x11.0 | 50.8x50.8x11.0 | 50.8x50.8x11.0 | 50.8x50.8x11.0 | 50.8x50.8x11.0 | 50.8x50.8x11.0 | |||||
| Working Temperature | -25~+71°C | ||||||||||||||||
| Satety Standards | EAC TP TC 020/2011 approved | ||||||||||||||||
| EMC Standards | Compliance to BS EN/EN55032 Class A, FCC part 15 Class A, EAC TP TC 020 | ||||||||||||||||
