Home / DC-DC Module Type / SKM30

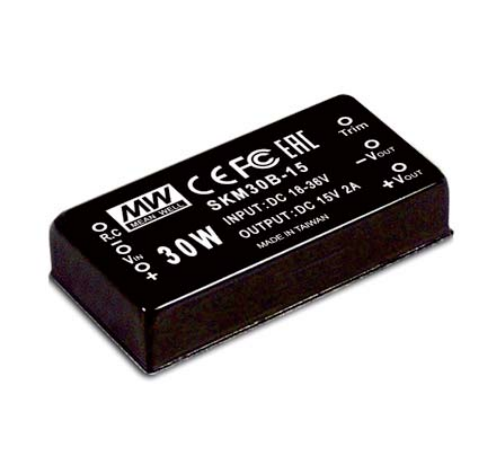

SKM30 Series
30W DC-DC Regulated Single Output Converter
SKM30 Series Main Features:
2"x1" compact size
2:1 wide input range
Built-in remote ON/OFF control
1.5KVDC I/O isolation
Models:
Manufacturer:
Type:
Other features:
SKM30A-05 / SKM30B-05
SKM30C-05 / SKM30A-12
SKM30B-12 / SKM30C-12
SKM30A-15 / SKM30B-15
SKM30C-15
MEAN WELL
Module
Comply with CE / FCC without external components
Six-sided shield metal case
Protections: Short circuit / Overload /
Input and Output under voltage
High efficiecy tup to 90%
100% burn-in test
Low cost / High reliability
2 years warranty
Quote Request
| SKM30A-05 | SKM30B-05 | SKM30C-05 | SKM30A-12 | SKM30B-12 | SKM30C-12 | SKM30A-15 | SKM30B-15 | SKM30C-15 | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | ||||||||
| Input Voltage | 9~18V | 18~36V | 36~75V | 9~18V | 18~36V | 36~75V | 9~18V | 18~36V | 36~75V | ||||||||
| Output Current | 0.6~6A | 0.6~6A | 0.6~6A | 0.25~2.5A | 0.25~2.5A | 0.25~2.5A | 0.2~2A | 0.2~2A | 0.2~2A | ||||||||
| Output Voltage | 5V | 5V | 5V | 12V | 12V | 12V | 15V | 15V | 15V | ||||||||
| Dimensions | 50.8x25.4x11.2 | 50.8x25.4x11.2 | 50.8x25.4x11.2 | 50.8x25.4x11.2 | 50.8x25.4x11.2 | 50.8x25.4x11.2 | 50.8x25.4x11.2 | 50.8x25.4x11.2 | 50.8x25.4x11.2 | ||||||||
| Working Temperature | -40~+75°C | ||||||||||||||||
| Satety Standards | EAC TP TC 020/2011 (EAC TP TC 004 for 48Vin type only) approved | ||||||||||||||||
| EMC Standards | Compliance to EN55032 Class A, FCC part 15 Class A without external components BS EN/ , EAC TP TC 020 | ||||||||||||||||
