Home / DC-DC Module Type / SKM30-N

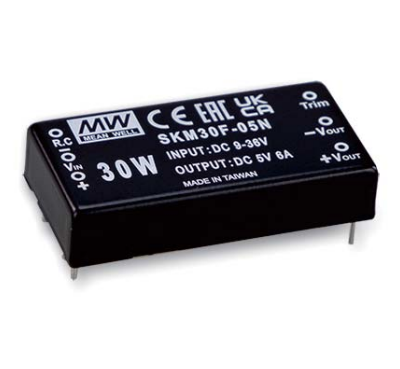

SKM30-N Series
30W 2"x1" Package DC-DC Regulated Converter
SKM30-N Series Main Features:
4:1 ultrawide input range
DIP 2"x1" package with industry standard pinout
High efficiency up to 89%
3KVDC I/O isolation
Models:
Manufacturer:
Type:
Other features:
SKM30F-05N / SKM30F-12N
SKM30F-15N / SKM30G-05N
SKM30G-12N / SKM30G-15N
MEAN WELL
Module
Operating temperature range -40~+90℃
No minimum load required
Protections: Short circuit / Overload /
Over voltage
Remote ON/OFF control and Trimming output
Comply to BS EN/EN55032 radiated Class
A without additional components
3 years warranty
Quote Request
| SKM30F-05N | SKM30F-12N | SKM30F-15N | SKM30G-05N | SKM30G-12N | SKM30G-15N | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 30 | 30 | 30 | 30 | 30 | 30 | |||||||||||
| Input Voltage | 9~36V | 9~36V | 9~36V | 18~75V | 18~75V | 18~75V | |||||||||||
| Output Current | 0~6000mA | 0~2500mA | 0~2000mA | 0~6000mA | 0~2500mA | 0~2000mA | |||||||||||
| Output Voltage | 5V | 12V | 15V | 5V | 12V | 15V | |||||||||||
| Dimensions | 50.8x25.4x11.2 | 50.8x25.4x11.2 | 50.8x25.4x11.2 | 50.8x25.4x11.2 | 50.8x25.4x11.2 | 50.8x25.4x11.2 | |||||||||||
| Working Temperature | -40~+90°C | ||||||||||||||||
| Satety Standards | EAC TP TC 020/2011 approved | ||||||||||||||||
| EMC Standards | BS EN/EN55032(CISPR32), BS EN/EN61000-4-2, BS EN/EN61000-4-3, BS EN/EN61000-4-4 | ||||||||||||||||
