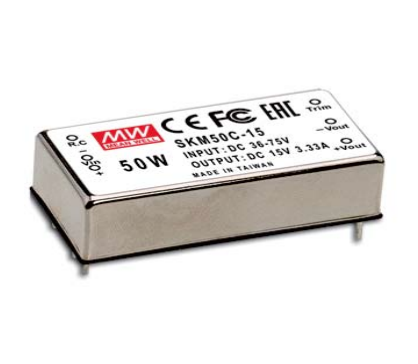

SKM50 Series
50W DC-DC Regulated Single Output Converter
SKM50 Series Main Features:
2"x1" compact size
2:1 wide input range
Built-in remote ON/OFF control
1.5KVDC I/O isolation
Models:
Manufacturer:
Type:
Other features:
SKM50B-05 / SKM50C-05
SKM50B-12 / SKM50C-12
SKM50B-15 / SKM50C-15
MEAN WELL
Module
Comply with CE / FCC without external components
Six-sided shield metal case
Protections: Short circuit / Overload /
Input and Output under voltage
High efficiecy tup to 92%
Built-in trimming output
100% burn-in test
Low cost / High reliability
2 years warranty
Quote Request
| SKM50B-05 | SKM50C-05 | SKM50B-12 | SKM50C-12 | SKM50B-15 | SKM50C-15 | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 50 | 50 | 50 | 50 | 50 | 50 | |||||||||||
| Input Voltage | 18~36V | 36~75V | 18~36V | 36~75V | 18~36V | 36~75V | |||||||||||
| Output Current | 1~10A | 1~10A | 0.41~4.17A | 0.41~4.17A | 0.33~3.33A | 0.33~3.33A | |||||||||||
| Output Voltage | 5V | 5V | 12V | 12V | 15V | 15V | |||||||||||
| Dimensions | 50.8x25.4x13.7 | 50.8x25.4x13.7 | 50.8x25.4x13.7 | 50.8x25.4x13.7 | 50.8x25.4x13.7 | 50.8x25.4x13.7 | |||||||||||
| Working Temperature | -40~+75°C | ||||||||||||||||
| Satety Standards | EAC TP TC 020/2011 (EAC TP TC 004 for 48Vin type only) approved | ||||||||||||||||
| EMC Standards | Compliance to BS EN/EN55032 Class A, FCC part 15 Class A without external components, EAC TP TC 020 | ||||||||||||||||
