Home / DC-DC Module Type / SKMW15

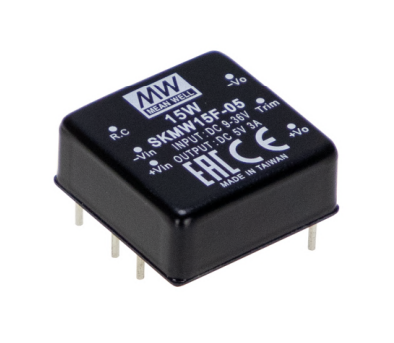

SKMW15 Series
15W 1"x1" Package DC-DC Regulated Converter
SKMW15 Series Main Features:
DIP 1"x1" package with industry standard pinout
4:1 ultrawide input range
Operating temperature range -40~85℃
3KVDC I/O isolation
Models:
Manufacturer:
Type:
Other features:
SKMW15F-03 / SKMW15F-05
SKMW15F-12 / SKMW15F-15
SKMW15G-03 / SKMW15G-05
SKMW15G-12 / SKMW15G-15
MEAN WELL
Module
Comply to BS EN/EN55032 radiated Class
A without additonal components
No minimum load reuqired
Protections: Short circuit / Overload /
Over voltage / Input under voltage
High efficiecy tup to 89%
3 years warranty
Quote Request
| SKMW15F-03 | SKMW15F-05 | SKMW15F-12 | SKMW15F-15 | SKMW15G-03 | SKMW15G-05 | SKMW15G-12 | SKMW15G-15 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | |||||||||
| Input Voltage | 9~36V | 9~36V | 9~36V | 9~36V | 18~75V | 18~75V | 18~75V | 18~75V | |||||||||
| Output Current | 0~3000mA | 0~3000mA | 0~1250mA | 0~1000mA | 0~3000mA | 0~3000mA | 0~1250mA | 0~1000mA | |||||||||
| Output Voltage | 3.3V | 5V | 12V | 15V | 3.3V | 5V | 12V | 15V | |||||||||
| Dimensions | 25.4x25.4x10.2 | 25.4x25.4x10.2 | 25.4x25.4x10.2 | 25.4x25.4x10.2 | 25.4x25.4x10.2 | 25.4x25.4x10.2 | 25.4x25.4x10.2 | 25.4x25.4x10.2 | |||||||||
| Working Temperature | -40~+85°C | ||||||||||||||||
| Satety Standards | EAC TP TC 020/2011 (EAC TP TC 004 for 48Vin type only) approved | ||||||||||||||||
| EMC Standards | BS EN/EN55032(CISPR32), BS EN/EN61000-4-2, BS EN/EN61000-4-3, BS EN/EN61000-4-4 | ||||||||||||||||
