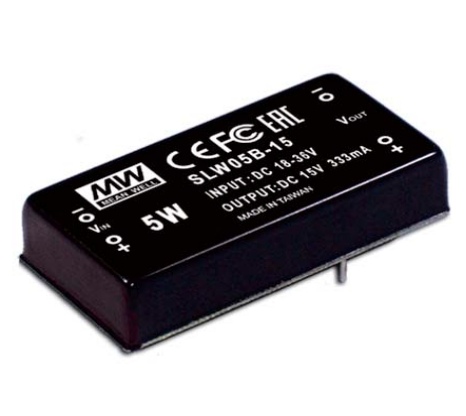

SLW05 Series
5W DC-DC Regulated Single Output Converter
SLW05 Series Main Features:
2:1 wide input range
4:1 wide input range (option)
3KVDC I/O isolation(option)
1.5KVDC I/O isolation
Models:
Manufacturer:
Type:
Other features:
SLW05A-05 / SLW05B-05
SLW05C-05 / SLW05A-09
SLW05B-09 / SLW05C-09
SLW05A-12 / SLW05B-12
SLW05C-12 / SLW05A-15
SLW05B-15 / SLW05C-15
MEAN WELL
Module
Built-in EMI filter
Cooling by free air convection
Protections: Short circuit / Overload
Six-sided shield metal case
100% burn-in test
Low cost / High reliability
Approvals: FCC / EAC / CE / UKCA
2 years warranty
Quote Request
| SLW05A-05 | SLW05B-05 | SLW05C-05 | SLW05A-09 | SLW05B-09 | SLW05C-09 | SLW05A-12 | SLW05B-12 | SLW05C-12 | SLW05A-15 | SLW05B-15 | SLW05C-15 | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | |||||
| Input Voltage | 9~18V | 18~36V | 36~72V | 9~18V | 18~36V | 36~72V | 9~18V | 18~36V | 36~72V | 9~18V | 18~36V | 36~72V | |||||
| Output Current | 100~1000mA | 100~1000mA | 100~1000mA | 55.6~556mA | 55.6~556mA | 55.6~556mA | 41.7~417mA | 41.7~417mA | 41.7~417mA | 33.3~333mA | 33.3~333mA | 33.3~333mA | |||||
| Output Voltage | 5V | 5V | 5V | 9V | 9V | 9V | 12V | 12V | 12V | 15V | 15V | 15V | |||||
| Dimensions | 50.8x25.4x11.27 | 50.8x25.4x11.27 | 50.8x25.4x11.27 | 50.8x25.4x11.27 | 50.8x25.4x11.27 | 50.8x25.4x11.27 | 50.8x25.4x11.27 | 50.8x25.4x11.27 | 50.8x25.4x11.27 | 50.8x25.4x11.27 | 50.8x25.4x11.27 | 50.8x25.4x11.27 | |||||
| Working Temperature | -25~+71°C | ||||||||||||||||
| Satety Standards | EAC TP TC 020/2011 approved | ||||||||||||||||
| EMC Standards | Compliance to BS EN/EN55032 Class B, FCC part 15 Class B, EAC TP TC 020 | ||||||||||||||||
