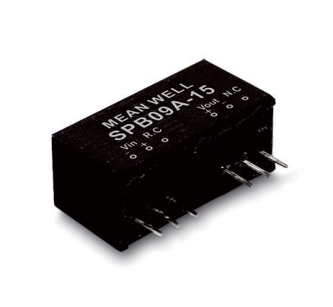

SPB09 Series

9W SIP Package DC-DC Regulated Converter

SPB09

SPB09 Series Main Features:

SIP8 package with industry standard pinout

Operating temperature range -40~+90℃

No minimum load required

High efficiency up to 89%

Models:

Manufacturer:

Type:

Other features:

SPB09A-03 / SPB09A-05
SPB09A-12 / SPB09A-15
SPB09A-24 / SPB09B-03
SPB09B-05 / SPB09B-12
SPB09B-15 / SPB09B-24
SPB09C-03 / SPB09C-05
SPB09C-12 / SPB09C-15
SPB09C-24

MEAN WELL

Module

Protections: Short circuit (Continuous)/Over
-load / Input under voltage

2:1 wide input range

1.5KVDC I/O isolation

Remote ON/OFF control

9V model available(optional)

3 years warranty

Quote Request

    SPB09A-03SPB09A-05SPB09A-12SPB09A-15SPB09A-24SPB09B-03SPB09B-05SPB09B-12SPB09B-15SPB09B-24SPB09C-03SPB09C-05SPB09C-12SPB09C-15SPB09C-24
    Wattage999999999999999
    Input Voltage9~18V9~18V9~18V9~18V9~18V18~36V18~36V18~36V18~36V18~36V36~75V36~75V36~75V36~75V36~75V
    Output Current0~2000mA0~1600mA0~750mA0~600mA0~375mA0~2000mA0~1600mA0~750mA0~600mA0~375mA0~2000mA0~1600mA0~750mA0~600mA0~375mA
    Output Voltage3.3V5V12V15V24V3.3V5V12V15V24V3.3V5V12V15V24V
    Dimensions24x9.6x11.224x9.6x11.224x9.6x11.224x9.6x11.224x9.6x11.224x9.6x11.224x9.6x11.224x9.6x11.224x9.6x11.224x9.6x11.224x9.6x11.224x9.6x11.224x9.6x11.224x9.6x11.224x9.6x11.2
    Working Temperature-40~+90°C
    Satety StandardsEAC TP TC 020/2011 (EAC TP TC 004 for 48Vin type only) approved
    EMC StandardsBS EN/EN55032(CISPR32), BS EN/EN61000-4-2, BS EN/EN61000-4-3, BS EN/EN61000-4-4
