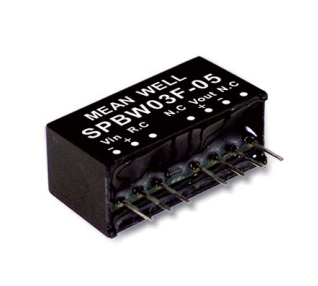

SPBW03 Series
3W SIP Package DC-DC Regulated Converter
SPBW03 Series Main Features:
SIP8 package with industry standard pinout
Operating temperature range -40~+85℃
Comply to BS EN/EN55032 radiated Class A/B with additional components
Models:
Manufacturer:
Type:
Other features:
SPBW03F-03 / SPBW03F-05
SPBW03F-12 / SPBW03F-15
SPBW03G-03 / SPBW03G-05
SPBW03G-12 / SPBW03G-15
MEAN WELL
Module
High efficiency up to 85%
Protections: Short circuit (Continuous)/Over
-load / Input under voltage
4:1 ultrawide input range
1.5KVDC I/O isolation
Remote ON/OFF control
No minimum load required
3 years warranty
Quote Request
| SPBW03F-03 | SPBW03F-05 | SPBW03F-12 | SPBW03F-15 | SPBW03G-03 | SPBW03G-05 | SPBW03G-12 | SPBW03G-15 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | |||||||||
| Input Voltage | 9~36V | 9~36V | 9~36V | 9~36V | 18~75V | 18~75V | 18~75V | 18~75V | |||||||||
| Output Current | 0~700mA | 0~600mA | 0~250mA | 0~200mA | 0~700mA | 0~600mA | 0~250mA | 0~200mA | |||||||||
| Output Voltage | 3.3V | 5V | 12V | 15V | 3.3V | 5V | 12V | 15V | |||||||||
| Dimensions | 21.8x9.2x11.1 | 21.8x9.2x11.1 | 21.8x9.2x11.1 | 21.8x9.2x11.1 | 21.8x9.2x11.1 | 21.8x9.2x11.1 | 21.8x9.2x11.1 | 21.8x9.2x11.1 | |||||||||
| Working Temperature | -40~+85°C | ||||||||||||||||
| Satety Standards | EAC TP TC 020/2011 (EAC TP TC 004 for 48Vin type only) approved | ||||||||||||||||
| EMC Standards | BS EN/EN55032(CISPR32), BS EN/EN61000-4-2, BS EN/EN61000-4-3, BS EN/EN61000-4-4 | ||||||||||||||||
