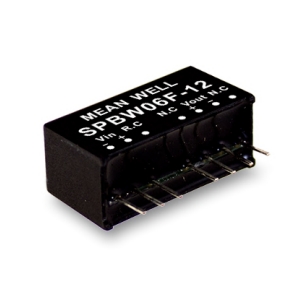

SPBW06 Series
6W SIP Package DC-DC Regulated Converter
SPBW06 Series Main Features:
SIP8 package with industry standard pinout
Operating temperature range -40~+85℃
Models:
Manufacturer:
Type:
Other features:
SPBW06F-03 / SPBW06F-05
SPBW06F-12 / SPBW06F-15
SPBW06G-03 / SPBW06G-05
SPBW06G-12 / SPBW06G-15
MEAN WELL
Module
High efficiency up to 89%
Protections: Short circuit (Continuous)/Over
-load
4:1 ultrawide input range
1.5KVDC I/O isolation
Remote ON/OFF control
No minimum load required
3 years warranty
Quote Request
| SPBW06F-03 | SPBW06F-05 | SPBW06F-12 | SPBW06F-15 | SPBW06G-03 | SPBW06G-05 | SPBW06G-12 | SPBW06G-15 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | |||||||||
| Input Voltage | 9~36V | 9~36V | 9~36V | 9~36V | 18~75V | 18~75V | 18~75V | 18~75V | |||||||||
| Output Current | 0~1500mA | 0~1200mA | 0~500mA | 0~400mA | 0~1500mA | 0~1200mA | 0~500mA | 0~400mA | |||||||||
| Output Voltage | 3.3V | 5V | 12V | 15V | 3.3V | 5V | 12V | 15V | |||||||||
| Dimensions | 21.8x9.2x11.1 | 21.8x9.2x11.1 | 21.8x9.2x11.1 | 21.8x9.2x11.1 | 21.8x9.2x11.1 | 21.8x9.2x11.1 | 21.8x9.2x11.1 | 21.8x9.2x11.1 | |||||||||
| Working Temperature | -40~+85°C | ||||||||||||||||
| Satety Standards | EAC TP TC 020/2011 (EAC TP TC 004 for 48Vin type only) approved | ||||||||||||||||
| EMC Standards | BS EN/EN55032(CISPR32), BS EN/EN61000-4-2, BS EN/EN61000-4-3, BS EN/EN61000-4-4 | ||||||||||||||||
