Home / DC-DC Module Type / SPRN01

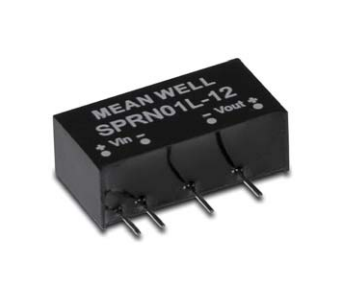

SPRN01 Series
1W SIP Package DC-DC Regulated Converter
SPRN01 Series Main Features:
SIP6 package with industry standard pinout
Operating temperature range -40~+90℃
Comply to BS EN/EN55032 radiated Class B without additional components
Models:
Manufacturer:
Type:
Other features:
SPRN01L-05 / SPRN01L-12
SPRN01L-15
/ SPRN01M-05
SPRN01M-12 / SPRN01M-15
SPRN01N-05 / SPRN01N-12
SPRN01N-15 / SPRN01O-05
SPRN01O-12 / SPRN01O-15
MEAN WELL
Module
Protections: Short circuit
1.5KVDC I/O isolation
Low cost
3 years warranty
Quote Request
| SPRN01L-05 | SPRN01L-12 | SPRN01L-15 | SPRN01M-05 | SPRN01M-12 | SPRN01M-15 | SPRN01N-05 | SPRN01N-12 | SPRN01N-15 | SPRN01O-05 | SPRN01O-12 | SPRN01O-15 | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||||
| Input Voltage | 4.75~5.5V | 4.75~5.5V | 4.75~5.5V | 11.4~13.2V | 11.4~13.2V | 11.4~13.2V | 22.8~26.4V | 22.8~26.4V | 22.8~26.4V | 45.6~52.8V | 45.6~52.8V | 45.6~52.8V | |||||
| Output Current | 0~200mA | 0~84mA | 0~67mA | 0~200mA | 0~84mA | 0~67mA | 0~200mA | 0~84mA | 0~67mA | 0~200mA | 0~84mA | 0~67mA | |||||
| Output Voltage | 5V | 12V | 15V | 5V | 12V | 15V | 5V | 12V | 15V | 5V | 12V | 15V | |||||
| Dimensions | 19.6x7.1x10.14 | 19.6x7.1x10.14 | 19.6x7.1x10.14 | 19.6x7.1x10.14 | 19.6x7.1x10.14 | 19.6x7.1x10.14 | 19.6x7.1x10.14 | 19.6x7.1x10.14 | 19.6x7.1x10.14 | 19.6x7.1x10.14 | 19.6x7.1x10.14 | 19.6x7.1x10.14 | |||||
| Working Temperature | -40~+90°C | ||||||||||||||||
| Satety Standards | EAC TP TC 020/2011 approved | ||||||||||||||||
| EMC Standards | BS EN/EN55032(CISPR32), BS EN/EN61000-4-2, BS EN/EN61000-4-3, BS EN/EN61000-4-4 | ||||||||||||||||
