Home / AC-DC Rack Power Type / DBR-3200

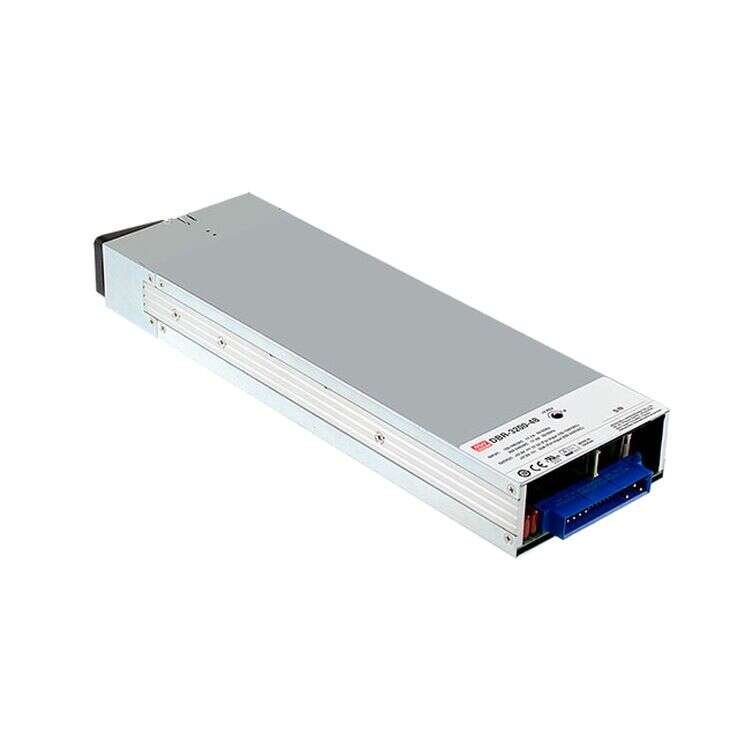

DBR-3200 Series
19 Inch Rack Power Supplies 3036W
DBR-3200 Series Main Features:
Active current sharing up to 12800W for one 19b rack shelf
Protections: Battery under voltage / Battery no connection / Short circuit / Over voltage / Over temperature
Models:
Manufacturer:
Type:
Other features:
DBR-3200-24 / DBR-3200-48
MEAN WELL
Rack Power Supplies
Charger for lead-acid batteries and Li
-ion batteries
Built-in default 3 stage charging curves
and programmable curve
Built-in I2C interface, PMBus proto
-col (Optional CANBus protocol)
Built-in OR-ing FET, support hot swap
(hot plug)
Universal AC input / Full range
Forced air cooling by built-in ther
-mal controlled DC fans
Output voltage and current programmable
5 years warranty
Quote Request
| DBR-3200-24 | DBR-3200-48 | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 3036 | 3036 | ||||||||||||||
| Input Voltage | 90~264VAC | 90~264VAC | ||||||||||||||
| Output Current | 0~110A | 0~55A | ||||||||||||||
| Output Voltage | 24V | 48V | ||||||||||||||
| Output Voltage Options | Single | Single | ||||||||||||||
| DC Output Adjustment | 23.5-30V | 47.5-58.8V | ||||||||||||||
| Dimensions | 325x107x41 | 325x107x41 | ||||||||||||||
| Working Temperature | -30~+70°C | |||||||||||||||
| Satety Standards | UL62368-1, TUV EN62368-1, EAC TP TC 004 approved | |||||||||||||||
| EMC Standards | EN55032 (CISPR32) / EN55011 (CISPR11), EN61000-3-2,3 Compliance to EN55024,EN61204-3, EN61000-6-2, EN61000-4-2,3,4,6,8,11 | |||||||||||||||
