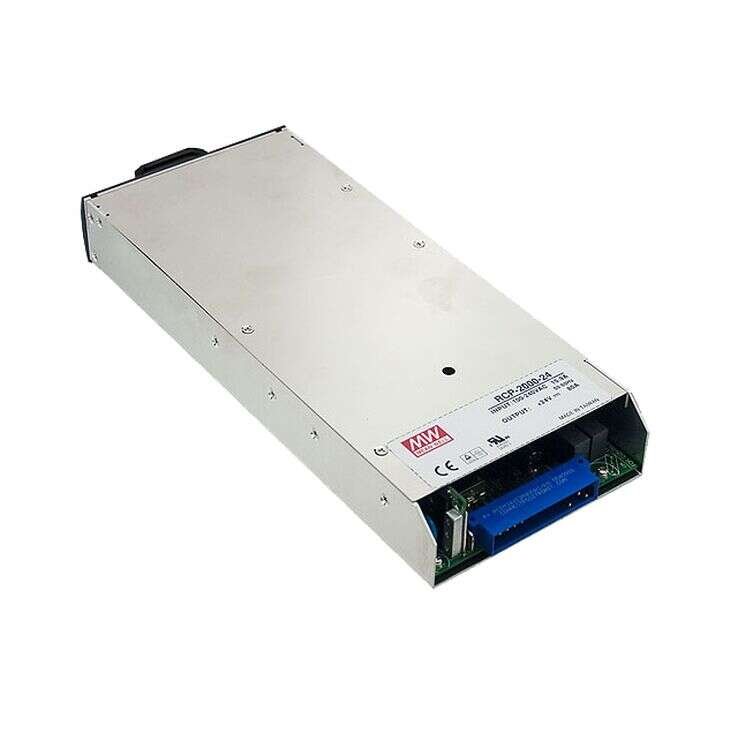

RCP-2000 Series
19 Inch Rack Power Supplies 2000W
RCP-2000 Series Main Features:
Active current sharing up to 6000W (3 units) in one 19" rack, 3 racks max. can be operated in parrallel (up to 9 units)
Models:
Manufacturer:
Type:
Other features:
RCP-2000-12 / RCP-2000-24
RCP-2000-48
MEAN WELL
Rack Power Supplies
High power density 21.4w/in³
Protections: Short cirucit/ Overload/
Over voltage / Over temperature
Universal AC/ input / full range
Withstand 300 VAC surge for 5 seconds
Built-in active PFC function, PF>0.98
Built-in 5V/0.3A, 12V/0.8A auxiliary power
Forced air cooling by built-in DC fan
Internal OR-ing FET
1U low profile
Remote control for single unit
3 years warranty
Quote Request
| RCP-2000-12 | RCP-2000-24 | RCP-2000-48 | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 2000 | 2000 | 2000 | |||||||||||||
| Input Voltage | 90~264VAC | 90~264VAC | 90~264VAC | |||||||||||||
| Output Current | 0~100A | 0~80A | 0~42A | |||||||||||||
| Output Voltage | 12V | 24V | 48V | |||||||||||||
| Output Voltage Options | Single | Single | Single | |||||||||||||
| DC Output Adjustment | 10.5~14V | 21~28V | 42~56V | |||||||||||||
| Dimensions | 295x127x41 | 295x127x41 | 295x127x41 | |||||||||||||
| Working Temperature | -30~+70°C | |||||||||||||||
| Satety Standards | UL60950-1, TUV EN60950-1 approved | |||||||||||||||
| EMC Standards | EN55022 class B, EN61000- 4-2,3,4,5,6,8,11, EN61000-6-2 heavy industry level, EN61204-3,EN6100-3-2 | |||||||||||||||
