Home / AC-DC Rack Power Type / DHP-1UT

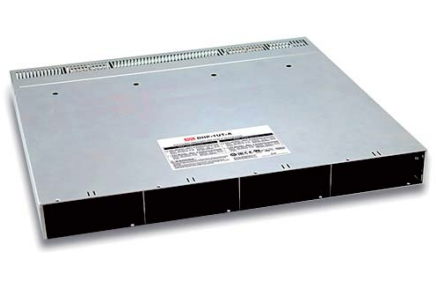

DHP-1UT Series
3200~12800W 1U Distributed Power/Charger System
DHP-1UT Series Main Features:
1U profile 19" rack shelf, fitting four 3200W modules up to 12800W with active current sharing
Models:
Manufacturer:
Type:
Other features:
DHP-12K1U-24 / DHP-12K1U-48
MEAN WELL
Rack Power Supplies
Output voltage and current programmable
Universal AC/ input / full range
Support hot swap(hot plug)
Built-in PMBus protocol(Optional CAN
-Bus protocol)
5 years warranty
Quote Request
| DHP-12K1U-24 | DHP-12K1U-48 | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 12768 | 12864 | ||||||||||||||
| Input Voltage | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | ||||||||||||||
| Output Current | 532A | 268A | ||||||||||||||
| Output Voltage | 24V | 48V | ||||||||||||||
| Dimensions | 400x440x44 | 400x440x44 | ||||||||||||||
| Working Temperature | -30~+70°C | |||||||||||||||
| Satety Standards | UL62368-1, CSA C22.2 , TUV EN62368-1 approved | |||||||||||||||
