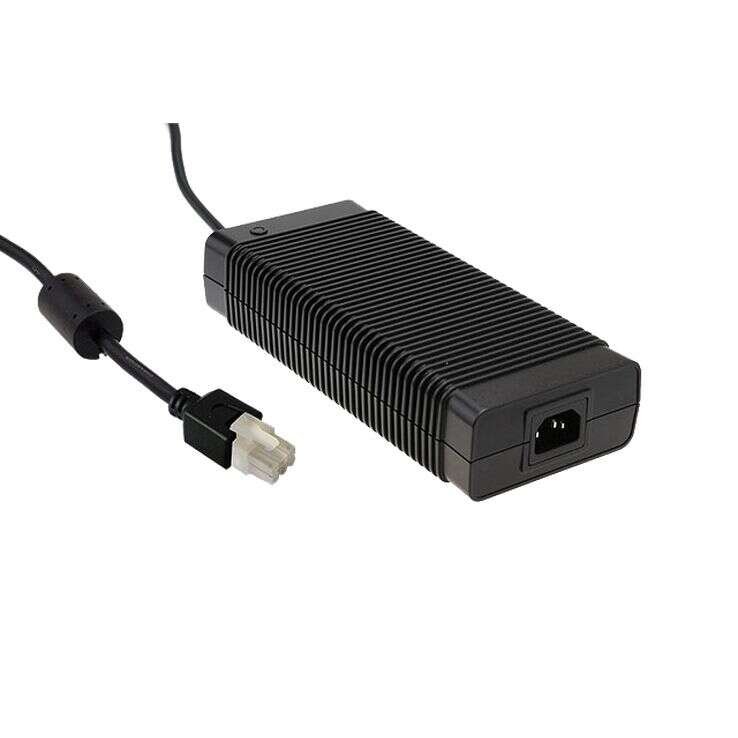

GST360A Series
External Power Supplies 330–360W
GST360A Series Main Features:
The GST360A is suitable for commercial equipment, industrial instrument, and other equipment where high efficiency is critical.
Models:
Manufacturer:
Type:
Other features:
GST360A12-C8P / GST360A15-C8P
GST360A24-C6P / GST360A36-C6P
GST360A48-C6P / GST360A55-C6P
MEAN WELL
Adaptor
Common applications include 3D print
-er, POS system, gaming systems, port
-able speaker, portable stage lighting,
PoE, etc
Universal AC Input / Full range
IEC320-C14 AC inlet (Class I with FG)
450W peak load capability (3s)
Fanless design, cooling by free air convection
No load power consumption< 0.5W
Support operation at 5000m altitude
3 years warranty
Quote Request
| GST360A12-C8P | GST360A15-C8P | GST360A24-C6P | GST360A36-C6P | GST360A48-C6P | GST360A55-C6P | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 330 | 340.5 | 360 | 360 | 360 | 360 | ||||||||||
| Input Voltage | 85~264VAC | 85~264VAC | 85~264VAC | 85~264VAC | 85~264VAC | 85~264VAC | ||||||||||
| Output Current | 27.5A | 22.7A | 15A | 10A | 7.5A | 6.55A | ||||||||||
| Output Voltage | 12V | 15V | 24V | 36V | 48V | 55V | ||||||||||
| Dimensions | 220x95x46 | 220x95x46 | 220x95x46 | 220x95x46 | 220x95x46 | 220x95x46 | ||||||||||
| Working Temperature | -30~+70°C | |||||||||||||||
| Satety Standards | UL62368-1, CSA C22.2 NO.62368-1, Dekra BS EN/EN62368-1, BSMI CNS14336, CCC GB4943, PSE J62368-1, BIS IS13252, KC 62368-1, EAC TP TC 004 approved | |||||||||||||||
| EMC Standards | BS EN/EN55032(CISPR32), FCC PART 15/CISPR22 CAN ICES-3(B)/NMB-3(B), CNS13438, GB17625.1 EAC TP TC 020, MSIP KN32 | |||||||||||||||
