Home / AC-DC Adaptor / GST36E

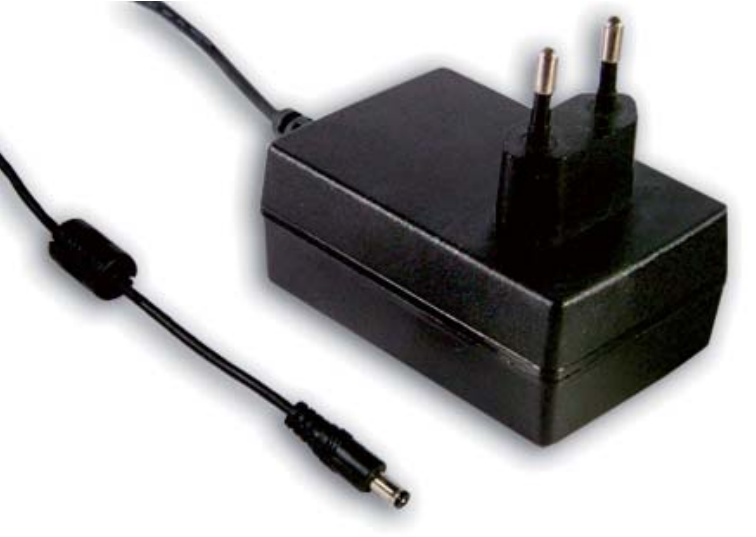

GST36E Series
36W AC-DC Reliable Green Industrial Adaptor
GST36E Series Main Features:
Protections: Short circuit / Overload /
Over voltage
Comply with EISA 2007/DoE and NRCan
Models:
Manufacturer:
Type:
Other features:
GST36E05-P1J / GST36E09-P1J
GST36E12-P1J / GST36E24-P1J
GST36E48-P1J
MEAN WELL
Adaptor
Global certificates
Universal AC Input / Full range
2pole USA plugs, Class II power unit
No load power consumption <0.075W
Energy efficiency Level VI
Fully enclosed plastic case
Pass LPS
LED indicator for power on
3 years warranty
Quote Request
| GST36E05-P1J | GST36E09-P1J | GST36E12-P1J | GST36E24-P1J | GST36E48-P1J | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 21.5 | 28 | 36 | 36 | 36 | |||||||||||
| Input Voltage | 85~264VAC | 85~264VAC | 85~264VAC | 85~264VAC | 85~264VAC | |||||||||||
| Output Current | 4.3A | 3.11A | 3A | 1.5A | 0.75A | |||||||||||
| Output Voltage | 5V | 9V | 12V | 24V | 48V | |||||||||||
| Dimensions | 79x54x33 | 79x54x33 | 79x54x33 | 79x54x33 | 79x54x33 | |||||||||||
| Working Temperature | -30~+70°C | |||||||||||||||
| Satety Standards | TUV EN62368-1, EAC TP TC 004 approved; SIRIM MS IEC60950-1(optional) approved | |||||||||||||||
| EMC Standards | EN55032(CISPR32), EAC TP TC 020; EN61000-3-2; EN61000-3-3 | |||||||||||||||
