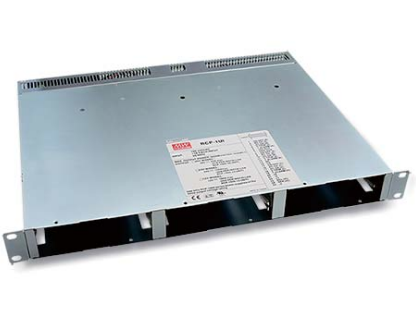

RCP-1U Series
1000 ~ 3000W 1U Distributed Power System
RCP-1U Series Main Features:
Universal AC input / Full range
Output voltage programmable
Models:
Manufacturer:
Type:
Other features:
RCP-3K1U-12 / RCP-3K1U-24
RCP-3K1U-48
MEAN WELL
Rack Power Supplies
1U profile 19" rack shelf, fitting three
1000W modules up to 3000W with
active current sharing
Support hot swap(hot plug)
5 years warranty
Quote Request
| RCP-3K1U-12 | RCP-3K1U-24 | RCP-3K1U-48 | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 2160 | 2880 | 3024 | |||||||||||||
| Input Voltage | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | |||||||||||||
| Output Current | 180A | 120A | 63A | |||||||||||||
| Output Voltage | 12V | 24V | 48V | |||||||||||||
| Output Voltage Options | Single | Single | Single | |||||||||||||
| Dimensions | 350.8x483.6x44 | 350.8x483.6x44 | 350.8x483.6x44 | |||||||||||||
| Working Temperature | -20~+60°C | |||||||||||||||
| Satety Standards | UL62368-1, CSA C22.2 , TUV EN62368-1 EAC TP TC 004 approved | |||||||||||||||
| EMC Standards | BS EN/EN55032 (CISPR32), BS EN/EN61000-3-2, BS EN/EN61000-4-2 | |||||||||||||||
