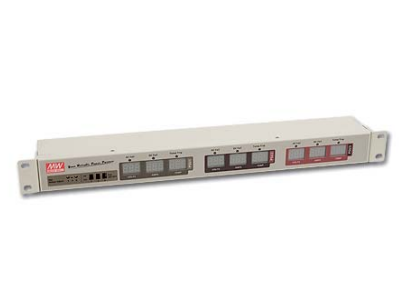

RCP-MU Series
Power Control and Monitor System
RCP-MU Series Main Features:
1U low profile
19-inch back mounting
Control and monitor up to 3 RCP-1000 units
Models:
Manufacturer:
Type:
Other features:
RCP-MU
MEAN WELL
Rack Power Supplies
Suitable for all kinds of RCP output
(12V, 24V, 48V)
Digital meters for output voltage,
output current, and internal temperature
on front panel
Potential meter for adjusting output
voltage of RCP-1000 unit on front panel
Removable fixing accessory
Relay contacts and LED indicators for AC
fail, DC fail, and over temperature warning
3 years warranty
Quote Request
| RCP-MU | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Input Voltage | 90~264VAC 127~370VDC | |||||||||||||||
| Dimensions | 440x68x44 | |||||||||||||||
| Working Temperature | -20~+60°C | |||||||||||||||
| Satety Standards | Design refer to EN62368-1, EAC TP TC 004 approved | |||||||||||||||
| EMC Standards | Compliance to EN55032 (CISPR32) Class B, EN61000-3-2,-3, EAC TP TC 020 | |||||||||||||||
