Home / AC-DC Rack Power Type / RHP-1U

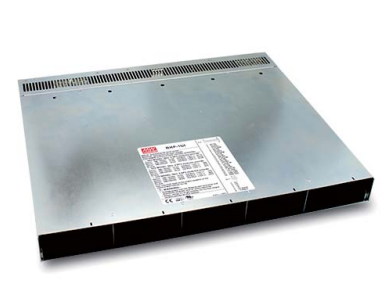

RHP-1U Series
1600~8000W 1U Distributed Power/Charger System
RHP-1U Series Main Features:
Support hot swap(hot plug)
Universal AC/ input / full range
Models:
Manufacturer:
Type:
Other features:
RHP-8K1U-12 / RHP-8K1U-24
RHP-8K1U-48
MEAN WELL
Rack Power Supplies
1U profile 19" rack shelf, fitting five
1600W modules up to 8000W with
active current sharing
Output voltage and current programmable
Built-in PMBus protocol
5 years warranty
Quote Request
| RHP-8K1U-12 | RHP-8K1U-24 | RHP-8K1U-48 | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 7500 | 8040 | 8040 | |||||||||||||
| Input Voltage | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | |||||||||||||
| Output Current | 625A | 335A | 167.5A | |||||||||||||
| Output Voltage | 12V | 24V | 48V | |||||||||||||
| Dimensions | 365x482.6x44 | 365x482.6x44 | 365x482.6x44 | |||||||||||||
| Working Temperature | -30~+70°C | |||||||||||||||
| Satety Standards | UL62368-1, CAN/CSA C22.2 No. 62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved | |||||||||||||||
