Home / AC-DC Rack Power Type / RKP-1U

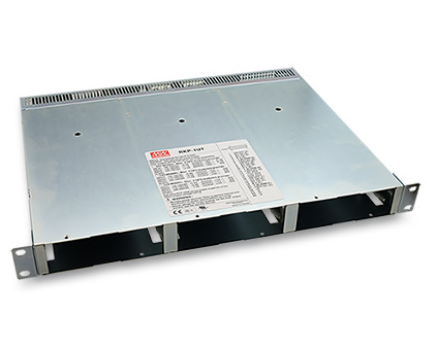

RKP-1U Series
2000~6000W 1U Distributed Power System
RKP-1U Series Main Features:
1U profile 19" rack shelf, fitting three 2000W modules up to 6000W with active current sharing
Models:
Manufacturer:
Type:
Other features:
RKP-6K1U-12 / RKP-6K1U-24
RKP-6K1U-48
MEAN WELL
Rack Power Supplies
Universal AC/ input / full range
Output current programmable
Support hot swap(hot plug)
Built-in PMBus protocol
5 years warranty
Quote Request
| RKP-6K1U-12 | RKP-6K1U-24 | RKP-6K1U-48 | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 3600 | 5760 | 6045 | |||||||||||||
| Input Voltage | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | |||||||||||||
| Output Current | 300A | 240A | 126A | |||||||||||||
| Output Voltage | 12V | 24V | 48V | |||||||||||||
| Dimensions | 350.8x482.6x44 | 350.8x482.6x44 | 350.8x482.6x44 | |||||||||||||
| Working Temperature | -40~+70°C | |||||||||||||||
| Satety Standards | UL62368-1, CAN/CSA C22.2 No. 62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved | |||||||||||||||
