Home / AC-DC Rack Power Type / RKP-CMU1

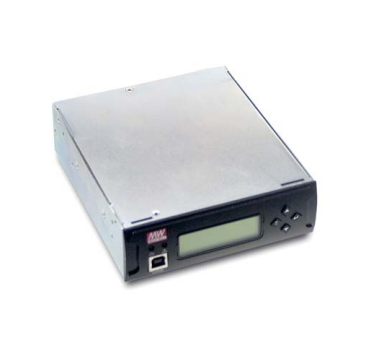

RKP-CMU1 Series
1U Rack Mountable Control and Monitor Unit
RKP-CMU1 Series Main Features:
1U low profile / 19-inch rack mountable
Front panel LCD and buttons for on-site service without PC
Models:
Manufacturer:
Type:
Other features:
RKP-CMU1 / RKP-1U-CMU1
MEAN WELL
Rack Power Supplies
Alarm / event log with time and date
Windows-based PC communication software
Easy wire connections on rear side
4 user programmable relay outputs
for traditional remote monitoring or warning
USB, RS-232 or Ethernet interface for
PC connection locally or remote moni
-toring and control via GSM modem
5 years warranty
Quote Request
| RKP-CMU1 | RKP-1U-CMU1 | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Input Voltage | 12~15VDC | 12~15VDC | ||||||||||||||
| Dimensions | 147.5x127x41 | 147.5x127x41 | ||||||||||||||
| Working Temperature | -25~+70°C | |||||||||||||||
| Satety Standards | EAC TP TC 004 approved, design refer to TUV EN62368-1 | |||||||||||||||
| EMC Standards | Compliance to EN55032 (CISPR32) BS EN/ BS EN/ Conduction Class B, Radiation Class A ; EN61000-3-2,-3, EAC TP TC 020 | |||||||||||||||
