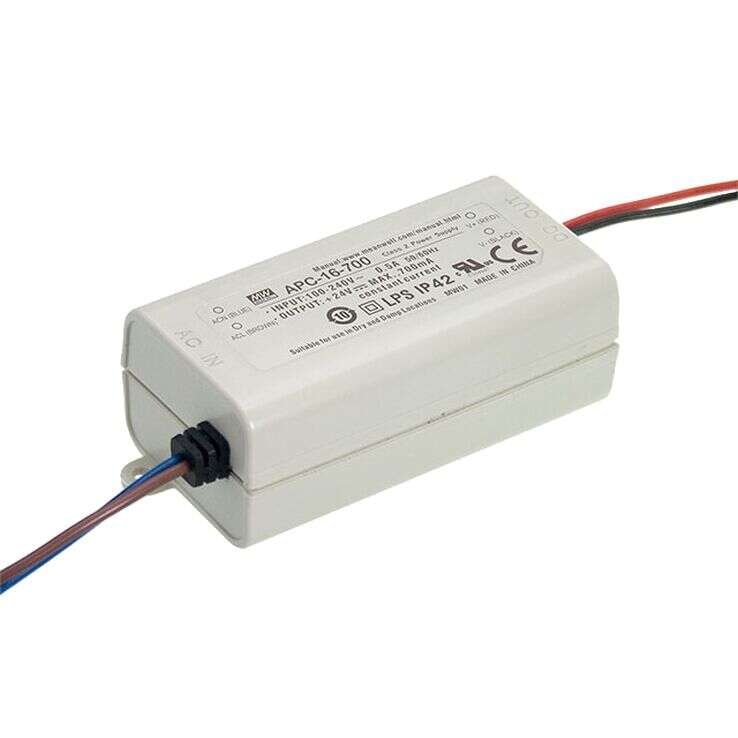

APC-16 Series
16W Single Output Switching Power Supply
APC-16 Series Main Features:
Fully isolated plastic case
Protections: Short circuit/ Over voltage
Universal AC input / Full Range
Small and compact size
Models:
Manufacturer:
Type:
Other features:
APC-16-350 / APC-16-700
MEAN WELL
Indoor Constant Current LED Driver
Constant Current
Isolation class II, no FG
Cooling by free air convection
Pass LPS
100% full load burn-in test
Low cost, High reliability
2 years warranty
Quote Request
| APC-16-350 | APC-16-700 | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 16 | 16 | ||||||||||||||
| Input Voltage | 90-264VAC 127-370VDC | 90-264VAC 127-370VDC | ||||||||||||||
| Output Voltage | 350mA | 700mA | ||||||||||||||
| Output Voltage Option | Single | Single | ||||||||||||||
| Dimensions | 77x40x29 | 77x40x29 | ||||||||||||||
| Working Temperature | -30-+70°C | |||||||||||||||
| Satety Standards | Design refer to TUV EN60950-1, EN61347-2-13, UL8750 | |||||||||||||||
| EMC Standards | EN55015, EN61000-3-2 class A, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547 | |||||||||||||||
