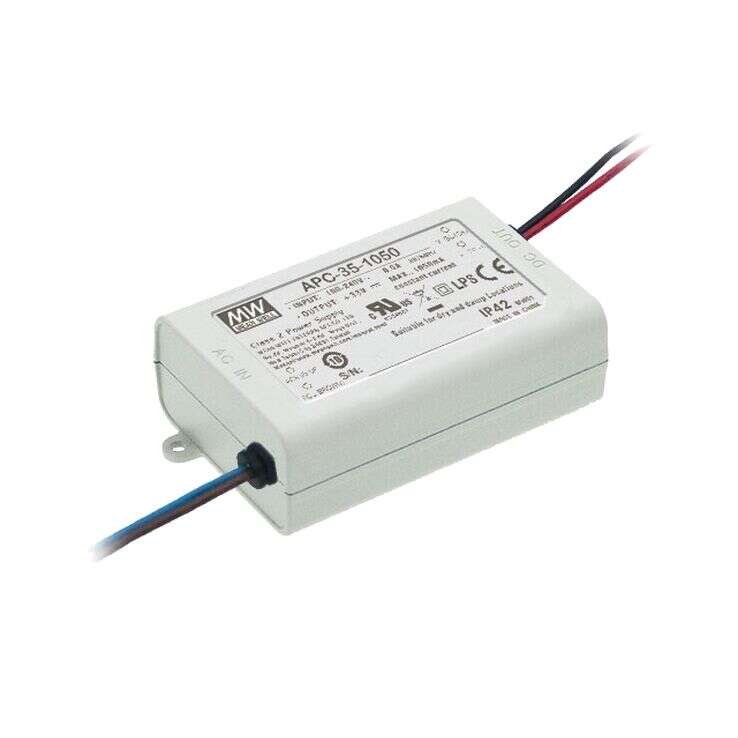

APC-35 Series
35W Single Output Switching Power Supply
APC-35 Series Main Features:
Fully isolated plastic case
Protections: Short circuit/ Overload/ Over voltage
Universal AC input / Full Range
Models:
Manufacturer:
Type:
Other features:
APC-35-350 / APC-35-500
APC-35-700 / APC-35-1050
MEAN WELL
Indoor Constant Current LED Driver
Withstand 300VAC surge input for 5 seconds
Small and compact size
Isolation class II, no FG
Cooling by free air convection
Pass LPS
Constant Current
100% full load burn-in test
Low cost, High reliability
2 years warranty
Quote Request
| APC-35-350 | APC-35-500 | APC-35-700 | APC-35-1050 | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 35 | 35 | 35 | 35 | ||||||||||||
| Input Voltage | 90-264VAC 127-370VDC | 90-264VAC 127-370VDC | 90-264VAC 127-370VDC | 90-264VAC 127-370VDC | ||||||||||||
| Output Voltage | 350mA | 500mA | 700mA | 1050mA | ||||||||||||
| Output Voltage Option | Single | Single | Single | Single | ||||||||||||
| Dimensions | 84x57x29.5 | 84x57x29.5 | 84x57x29.5 | 84x57x29.5 | ||||||||||||
| Working Temperature | -30-+70°C | |||||||||||||||
| Satety Standards | Design refer to EN60950-1, UL8750 | |||||||||||||||
| EMC Standards | EN55022, EN61000-3-2 Class A, EN610003-3, EN55024, EN61000-4-2, 3, 4, 5, 6, 8, 11; light industry level (surge 2KV), criteria A | |||||||||||||||
