Home / LED Driver Indoor Constant Voltage / APV-12

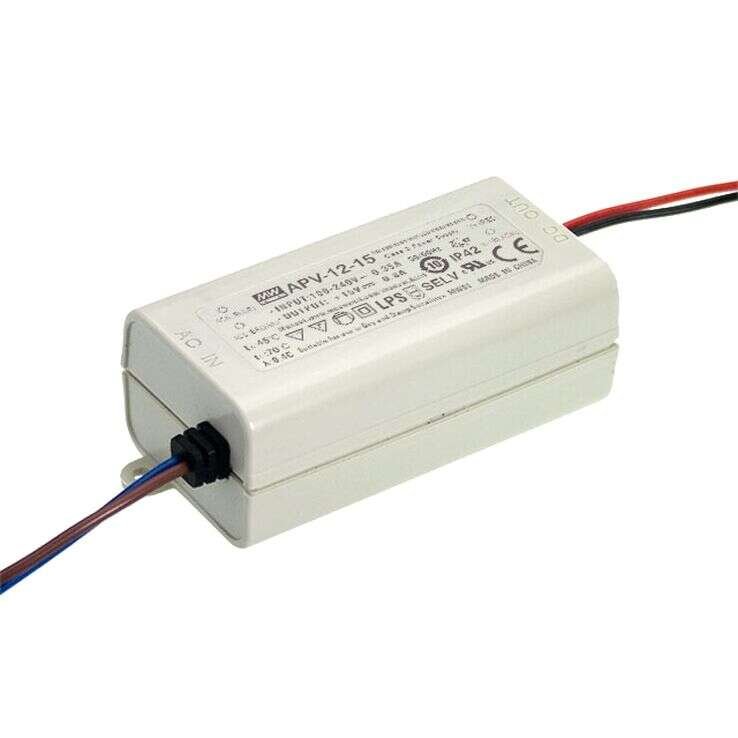

APV-12 Series
12W Single Output Switching Power Supply
APV-12 Series Main Features:
Fully isolated plastic case
Protections: Short circuit/ Overload/ Over voltage
Universal AC input / Full Range
Models:
Manufacturer:
Type:
Other features:
APV-12-5 / APV-12-12
APV-12-15 / APV-12-24
MEAN WELL
Indoor Constant Voltage LED Driver
Constant Voltage
Small and compact size
Isolation class II, no FG
Pass LPS
Cooling by free air convection
100% full load burn-in test
Low cost, High reliability
2 years warranty
Quote Request
| APV-12-5 | APV-12-12 | APV-12-15 | APV-12-24 | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 10 | 12 | 12 | 15 | ||||||||||||
| Input Voltage | 90-264VAC 127-370VDC | 90-264VAC 127-370VDC | 90-264VAC 127-370VDC | 90-264VAC 127-370VDC | ||||||||||||
| Output Voltage | 5 | 12 | 15 | 24 | ||||||||||||
| Output Voltage Option | Single | Single | Single | Single | ||||||||||||
| Dimensions | 77x40x29 | 77x40x29 | 77x40x29 | 77x40x29 | ||||||||||||
| Working Temperature | -30-+70°C | |||||||||||||||
| Satety Standards | Design refer to TUV EN60950-1, EN61347-2-13, UL8750 | |||||||||||||||
| EMC Standards | EN55015, EN61000-3-2 class A, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547 | |||||||||||||||
