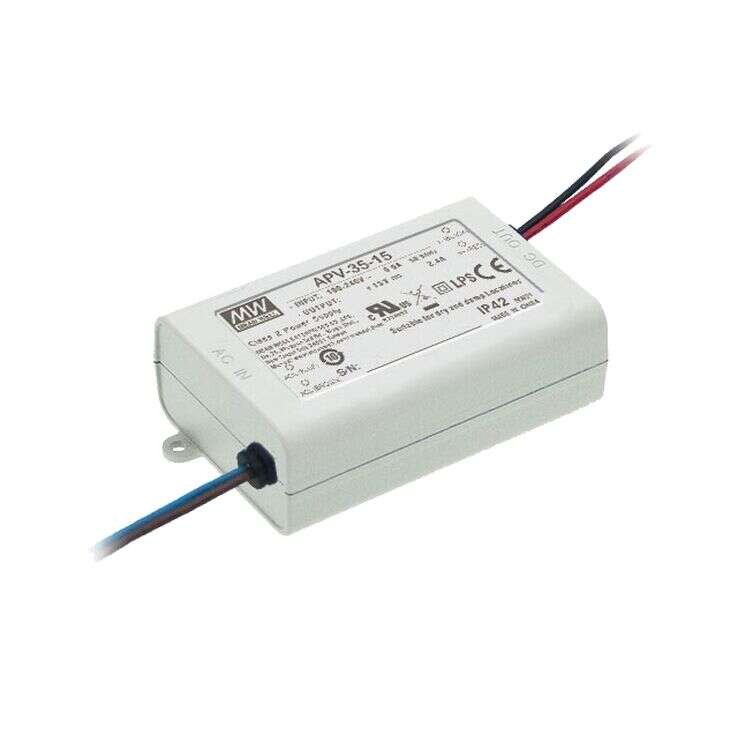

APV-35 Series
35W Single Output Switching Power Supply
APV-35 Series Main Features:
Fully isolated plastic case
Protections: Short circuit/ Overload/ Over voltage
Universal AC input / Full Range
Models:
Manufacturer:
Type:
Other features:
APV-35-5 / APV-35-12
APV-35-15 / APV-35-24
APV-35-36
MEAN WELL
Indoor Constant Voltage LED Driver
Small and compact size
Constant Voltage
Withstand 300VAC surge input for 5 seconds
Isolation class II, no FG
Cooling by free air convection
Pass LPS
100% full load burn-in test
Low cost, High reliability
2 years warranty
Quote Request
| APV-35-5 | APV-35-12 | APV-35-15 | APV-35-24 | APV-35-36 | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 25 | 35 | 35 | 35 | 35 | |||||||||||
| Input Voltage | 90-264VAC 127-370VDC | 90-264VAC 127-370VDC | 90-264VAC 127-370VDC | 90-264VAC 127-370VDC | 90-264VAC 127-370VDC | |||||||||||
| Output Voltage | 5 | 12 | 15 | 24 | 36 | |||||||||||
| Output Voltage Option | Single | Single | Single | Single | Single | |||||||||||
| Dimensions | 84x57x29.5 | 84x57x29.5 | 84x57x29.5 | |||||||||||||
| Working Temperature | -30-+70°C | |||||||||||||||
| Satety Standards | Design refer to EN60950-1, UL8750 | |||||||||||||||
| EMC Standards | EN55022, EN61000-3-2 Class A, EN610003-3, EN55024, EN61000-4-2, 3, 4, 5, 6, 8, 11; light industry level (surge 2KV), criteria A | |||||||||||||||
