Home / LED Driver Indoor Constant Voltage / APV-8

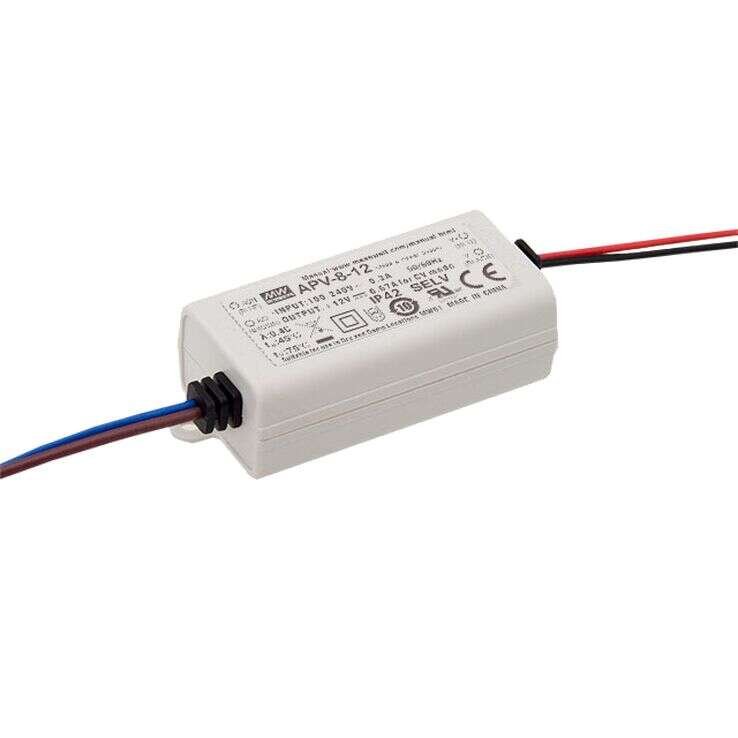

APV-8 Series
8W Single Output Switching Power Supply
HDR-30 Series Main Features:
Fully isolated plastic case
Protections: Short circuit
Universal AC input / Full Range
Small and compact size
Models:
Manufacturer:
Type:
Other features:
APV-8-5 / APV-8-12
APV-8-24
MEAN WELL
Indoor Constant Voltage LED Driver
No load power consumption <0.5W
IP30 design
Class II power unit, no FG
Cooling by free air convection
Pass LPS
100% full load burn-in test
Low cost, High reliability
2 years warranty
Quote Request
| APV-8-5 | APV-8-12 | APV-8-24 | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 7 | 8.04 | 8.16 | |||||||||||||
| Input Voltage | 90-264VAC 127-370VDC | 90-264VAC 127-370VDC | 90-264VAC 127-370VDC | |||||||||||||
| Output Voltage | 5 | 12 | 24 | |||||||||||||
| Output Voltage Option | Single | Single | Single | |||||||||||||
| Dimensions | 60x30x22 | 60x30x22 | 60x30x22 | |||||||||||||
| Working Temperature | -30-+70°C | |||||||||||||||
| Satety Standards | Design refer to TUV EN60950-1, EN61347-2-13, UL8750 | |||||||||||||||
| EMC Standards | EN55015, EN61000-3-2 class A, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547 | |||||||||||||||
