Home / AC-DC Chargers / DBU-3200

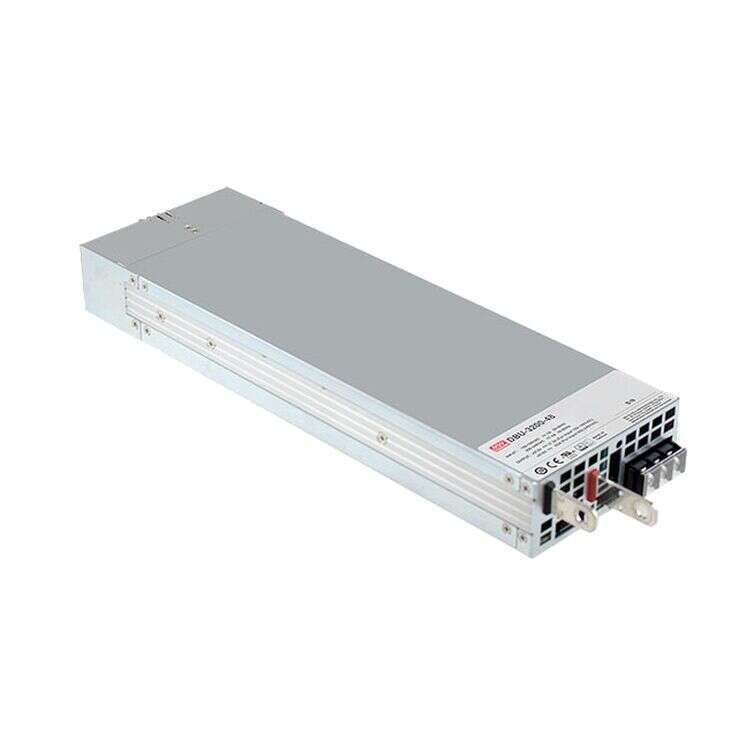

DBU-3200 Series
Chargers 3200W
DBU-3200 Series Main Features:
DBU-3200 is a 3.2KW single output rack-type/enclosed type AC/DC smart charger in 1U low profile and high power density up to 37W/inch3
Models:
Manufacturer:
Type:
Other features:
DBU-3200-24 / DBU-3200-48
MEAN WELL
Chargers
Universal Full Range AC Input & DC Input
Built-in Active PFC
High efficiency up to 95% (48V model)
Forced air cooling by built-in DC fan
Output voltage and constant current level programmable
Built-in ORing FET to support PSUs in par
-allel connection
Active current sharing, total system power up to 12800W (3+1, DBR)/ 6400W (1+1, DBU)
Support PMBus and CANBus optional
3 years warranty
Quote Request
| DBU-3200-24 | DBU-3200-48 | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 3200 | 3200 | ||||||||||||||
| Input Voltage | 90~264VAC | 90~264VAC | ||||||||||||||
| Output Current | 110A | 55A | ||||||||||||||
| Output Voltage | 24V | 48V | ||||||||||||||
| DC Output Adjustment | 23.5~30V | 47.5~58.8V | ||||||||||||||
| Dimensions | 325.8x107x41 | 325.8x107x41 | ||||||||||||||
| Working Temperature | -40~+85°C | |||||||||||||||
| Satety Standards | UL62368-1, CSA C22.2 No.62368-1, TUV EN62368-1, EAC TP TC 004 approved | |||||||||||||||
| EMC Standards | EN5532 (CISPR32), EN61000-3-2, EN61000-3-3 | |||||||||||||||
