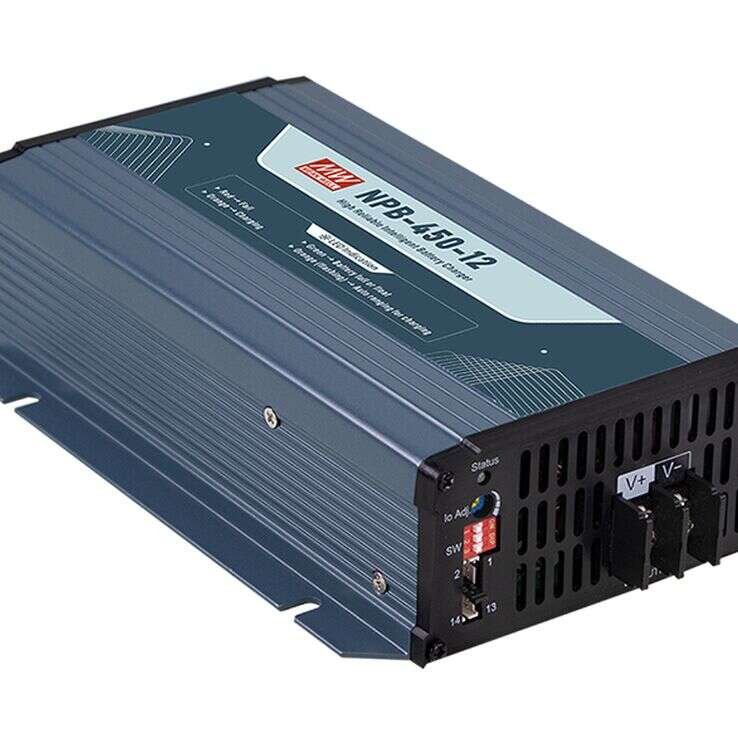

NPB-450 Series
Chargers 420–462W
NPB-450 Series Main Features:
NPB-450 is a miniaturized, versatile, and ultra-wide voltage intelligent charger.
Models:
Manufacturer:
Type:
Other features:
NPB-450-12 / NPB-450-24
NPB-450-48 / NPB-450-72
MEAN WELL
Charger
Auto ranging with ultra-wide charging voltage
Built-in CANBus protocol for control, sett
-ing and monitoring
Programmable charging curve via SBP-001
Charger OK and Battery Full signal
Thermal controlled DC fan for noise reduc-tion
Remote ON/OFF control
Carry handle accessory available
Suitable for lead-acid (Pb) and li-on batteries
3 years warranty
Quote Request
| NPB-450-12NFC | NPB-450-24NFC | NPB-450-48NFC | NPB-450-72NFC | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 420 | 453.6 | 456.96 | 462 | ||||||||||||
| Input Voltage | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | ||||||||||||
| Output Current | 25A | 13.5A | 6.8A | 5.5A | ||||||||||||
| DC Output Adjustment | 10.5~15.2V | 21~42V | 42~80V | 54~100V | ||||||||||||
| Dimensions | 180x96x49 | 180x96x49 | 180x96x49 | 180x96x49 | ||||||||||||
| Working Temperature | -30~+70°C | |||||||||||||||
| Satety Standards | CB IEC62368-1,IEC60335-1/2-29, Dekra BS EN/EN62368-1,BS EN/EN60335-1/2-29, UL62368-1, EAC TP TC 004 approved | |||||||||||||||
| EMC Standards | BS EN/EN55032(CISPR32), BS EN/EN55014-1, BS EN/EN61000-3-2, BS EN/EN61000-3-3 | |||||||||||||||
