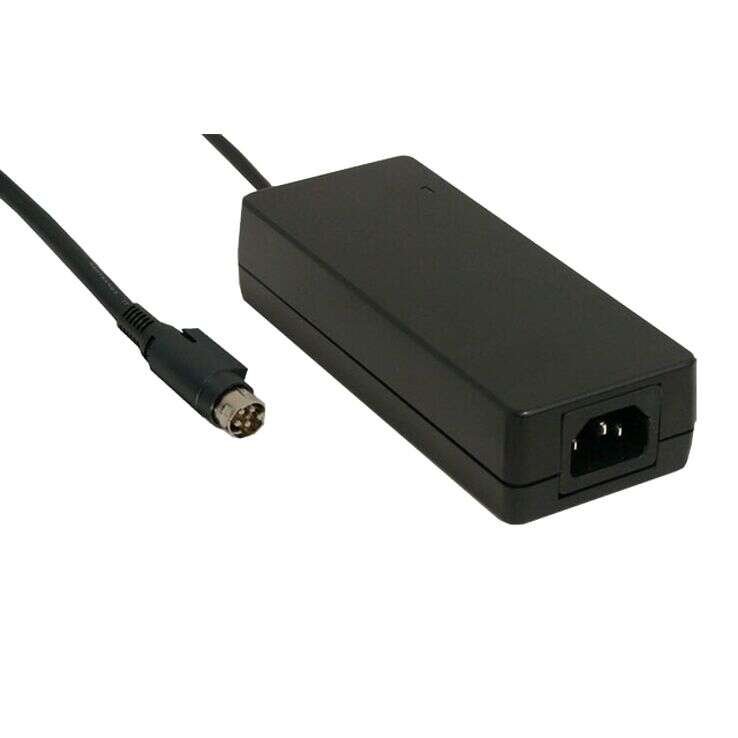

GC120 Series
Chargers 120W
GC120 Series Main Features:
No load power consumption < 0.5W
Protections: Short circuit / Overload / Over voltage / Over Temperature
Models:
Manufacturer:
Type:
Other features:
GC120A12-R7B / GC120A24-R7B
GC120A48-R7B
MEAN WELL
Charger
Built-in active PFC function, PF>0.97
Universal AC Input / Full range
High efficiency up to 91% 3 pole AC
inlet IEC320-C14
Class I power (with earth pin)
Fully enclosed plastic case
2 color LED indicator for charging status
2 years warranty
Quote Request
| GC120A12-R7B | GC120A24-R7B | GC120A48-R7B | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 120 | 120 | 120 | |||||||||||||
| Input Voltage | 85-264VAC 120-370VDC | 85-264VAC 120-370VDC | 85-264VAC 120-370VDC | |||||||||||||
| Output Current | 7.5A | 7.5A | 7.5A | |||||||||||||
| Output Voltage | 12V | 24V | 48V | |||||||||||||
| Output Voltage Options | Single | Single | Single | |||||||||||||
| Dimensions | 167x67x35 | 167x67x35 | 167x67x35 | |||||||||||||
| Working Temperature | -30~+70°C | |||||||||||||||
| Satety Standards | EN60950-1 approved | |||||||||||||||
| EMC Standards | EN55022 class B,EN61000-3-2,3 ,EN61000-4-2,3,4,5,6,8,11,FCC part 15 class B | |||||||||||||||
