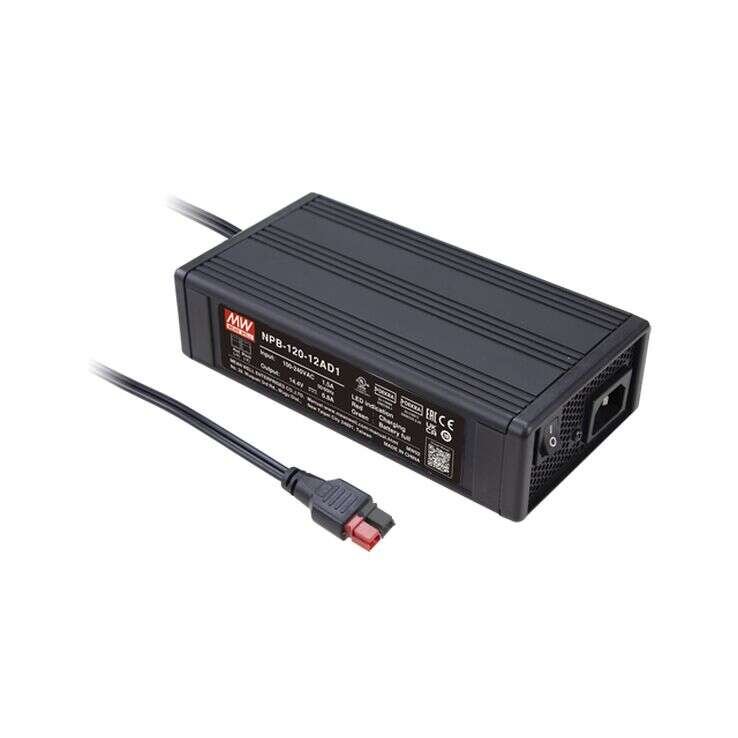

NPB-120 Series
Chargers 103.4–121.6W
NPB-120 Series Main Features:
NPB-120 series is a 120W charger for compatible with lead-acid (Flooded, Gel, AGM) and li-ion (Lithium iron, lithium manganese) batteries
Models:
Manufacturer:
Type:
Other features:
NPB-120-12XLR / NPB-120-12AD1
NPB-120-12TB / NPB-120-24XLR
NPB-120-24AD1 / NPB-120-24TB
NPB-120-48XLR / NPB-120-48AD1
NPB-120-48TB
MEAN WELL
Charger
90~264Vac universal AC input, built-in PFC
Charger for compatible with lead-acid and
li-ion batteries
Fanless design
2 or 3 stage selectable by DIP S.W
No load power consumption <0.4W(AC
S.W off)
125% peak load capability
Front panel LED indicator for charging status
3 years warranty
Quote Request
| NPB-120-12XLR | NPB-120-12AD1 | NPB-120-12TB | NPB-120-24XLR | NPB-120-24AD1 | NPB-120-24TB | NPB-120-48XLR | NPB-120-48AD1 | NPB-120-48TB | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 103.4 | 103.4 | 103.4 | 121.6 | 121.6 | 121.6 | 121.6 | 121.6 | 121.6 | |||||||
| Input Voltage | 90~264VAC | 90~264VAC | 90~264VAC | 90~264VAC | 90~264VAC | 90~264VAC | 90~264VAC | 90~264VAC | 90~264VAC | |||||||
| Output Current | 6.8A | 6.8A | 6.8A | 4A | 4A | 4A | 2A | 2A | 2A | |||||||
| DC Output Adjustment | 10.5~15.2V | 10.5~15.2V | 10.5~15.2V | 21~30.4V | 21~30.4V | 21~30.4V | 42~60.8V | 42~60.8V | 42~60.8V | |||||||
| Dimensions | 180x96x49 | 180x96x49 | 180x96x49 | 180x96x49 | 180x96x49 | 180x96x49 | 180x96x49 | 180x96x49 | 180x96x49 | |||||||
| Working Temperature | -30~+70°C | |||||||||||||||
| Satety Standards | CB IEC62368-1, IEC60335-1/2-29, Dekra BS EN/EN62368-1, BS EN/EN60335-1/2-29, UL62368-1, EAC TP TC 004 approved | |||||||||||||||
| EMC Standards | BS EN/EN55032(CISPR32), BS EN/EN55014-1, BS EN/EN61000-3-2, BS EN/EN61000-3-3 | |||||||||||||||
